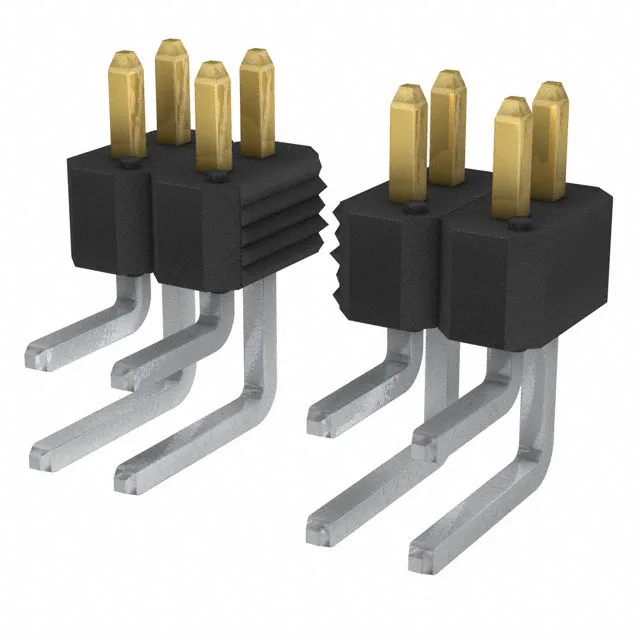

Amphenol ICC BERGSTIK 77317-809-72LF, 72-Position 2-Row Header
MPN77317-809-72LF
Active
Amphenol ICC BERGSTIK 77317-809-72LF, 72-position 0.100" (2.54mm) pitch, dual-row, right-angle through-hole male header; 3A per contact; gold GXT plating on mating interface, tin on solder tail; -65°C to 130°C operating; UL94 V-0 thermoplastic; unshrouded push-pull breakaway header.
$4.2877Ref. price · indicative, final on quote
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Series | BERGSTIK® |
| Type | Male Pin |
| Mounting | Through Hole, Right Angle |
| Connector type | Header, Breakaway |
| Fastening type | Push-Pull |
| Current rating | 3A per Contact |
| Operating temperature | -65°C~130°C |
| Contact material | Phosphor Bronze |
| Insulation color | Black |
| Insulation height | 0.190\" (4.83mm) |
| Insulation material | Thermoplastic |
| Material flammability rating | UL94 V-0 |
All specifications
| Parameter | Value |
|---|---|
| Style | Board to Board |
| Package | Bag |
| Shrouding | Unshrouded |
| Termination | Solder |
| Contact shape | Square |
| Rows | 2 |
| Pitch | 0.100\" (2.54mm) |
| Positions | 72 |
| Row spacing - mating | 0.100\" (2.54mm) |
| Contact finish - post | Tin |
| Contact finish - mating | Gold, GXT™ |
| Contact finish thickness - post | 78.7µin (2.00µm) |
| Contact finish thickness - mating | 15.0µin (0.38µm) |
Frequently asked questions
What compliance documentation does Amphenol ICC provide for the 77317-809-72LF?
The listing records a UL94 V-0 flammability rating on the housing material (thermoplastic). Specific RoHS/REACH declarations or UL agency file numbers are not stated in this listing — confirm through Amphenol ICC's product compliance portal or your distributor's FAE if agency certification is required for your build.
