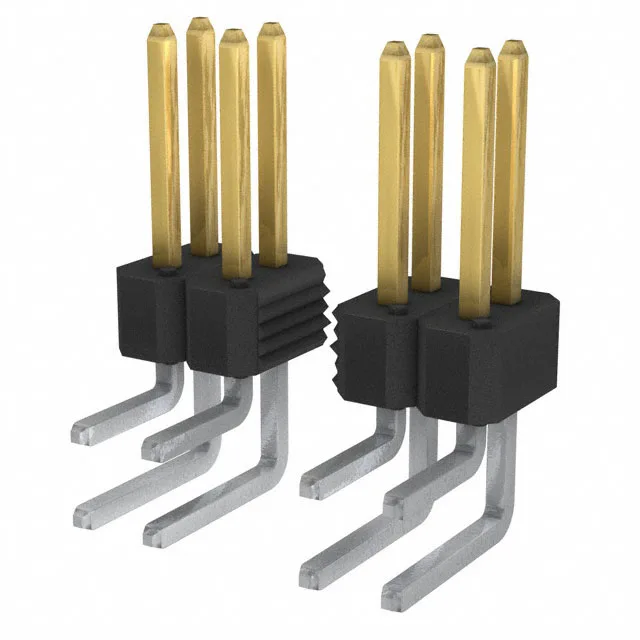

Amphenol ICC (FCI) BergStik 77317-811-12LF, 12-position dual-row unshrouded header, 0.100" (2.54 mm) pitch, right-angle through-hole, GXT gold mating finish, tin post, UL 94 V-0, 3 A per contact, -65°C to 130°C.
| Parameter | Value |
|---|---|
| Series | BERGSTIK® |
| Type | Male Pin |
| Mounting | Through Hole, Right Angle |
| Connector type | Header, Breakaway |
| Fastening type | Push-Pull |
| Current rating | 3A per Contact |
| Operating temperature | -65°C~130°C |
| Contact material | Phosphor Bronze |
| Insulation color | Black |
| Insulation height | 0.190\" (4.83mm) |
| Insulation material | Thermoplastic |
| Material flammability rating | UL94 V-0 |
| Parameter | Value |
|---|---|
| Style | Board to Board |
| Package | Bulk |
| Shrouding | Unshrouded |
| Termination | Solder |
| Contact shape | Square |
| Rows | 2 |
| Pitch | 0.100\" (2.54mm) |
| Positions | 12 |
| Row spacing - mating | 0.100\" (2.54mm) |
| Contact finish - post | Tin |
| Contact finish - mating | Gold, GXT™ |
| Contact finish thickness - post | 78.7µin (2.00µm) |
| Contact finish thickness - mating | 15.0µin (0.38µm) |
The UL 94 V-0 thermoplastic housing keeps the assembly flame-rated for equipment inside an enclosure.
The 12 positions are arranged in two rows spaced 0.100" apart; each pin is a square male contact.
Because the header is unshrouded, the mating receptacle must have its own polarization or keying if required. No specific mating part number is listed; confirm the receptacle's pin spacing and row spacing match the 0.100" grid.
