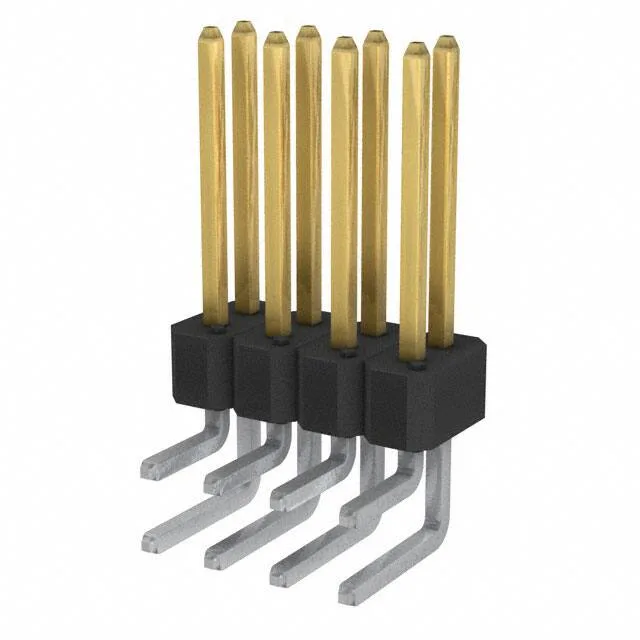

Amphenol ICC (FCI) BERGSTIK® series, 8-position unshrouded breakaway header, 0.100" (2.54 mm) pitch, through-hole right-angle, gold GXT™ mating finish, 3 A per contact, UL94 V-0.
| Parameter | Value |
|---|---|
| Series | BERGSTIK® |
| Type | Male Pin |
| Mounting | Through Hole, Right Angle |
| Connector type | Header, Breakaway |
| Fastening type | Push-Pull |
| Current rating | 3A per Contact |
| Operating temperature | -65°C~130°C |
| Contact material | Phosphor Bronze |
| Insulation color | Black |
| Insulation height | 0.190\" (4.83mm) |
| Insulation material | Thermoplastic |
| Material flammability rating | UL94 V-0 |
| Parameter | Value |
|---|---|
| Style | Board to Board |
| Package | Bag |
| Shrouding | Unshrouded |
| Termination | Solder |
| Contact shape | Square |
| Rows | 2 |
| Pitch | 0.100\" (2.54mm) |
| Positions | 8 |
| Row spacing - mating | 0.100\" (2.54mm) |
| Contact finish - post | Tin |
| Contact length - post | 0.106\" (2.69mm) |
| Contact finish - mating | Gold, GXT™ |
| Contact length - mating | 0.394\" (10.00mm) |
| Contact finish thickness - post | 78.7µin (2.00µm) |
| Contact finish thickness - mating | 15.0µin (0.38µm) |
The 77317-814-08LF: The dual-row arrangement with 0.100" row spacing gives an 8-position layout that fits a 2×4 pattern on the PCB. The 0.106" (2.69 mm) post length provides enough solder tail for a reliable through-hole joint on standard 1.6 mm boards, while the 0.394" (10.00 mm) mating pin length gives good wipe depth in the mating receptacle.
The 77317-814-08LF is sourced through independent distribution. Submit an RFQ for current pricing and lead time; availability is confirmed at quote time.
