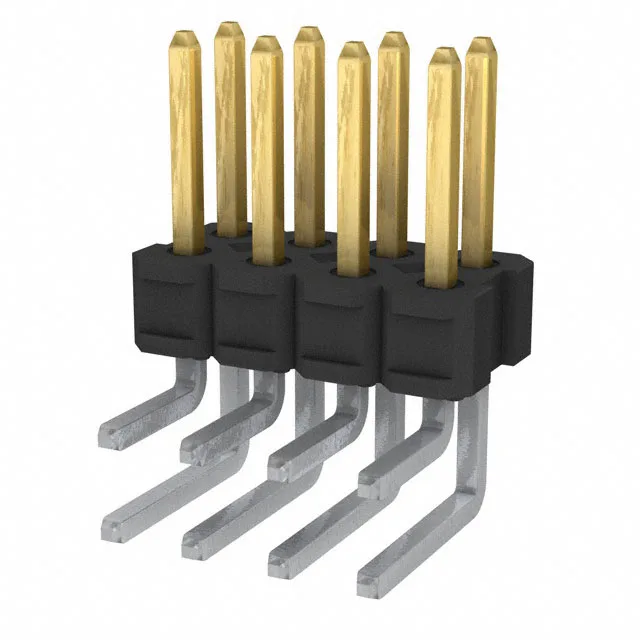

Amphenol ICC (FCI) BERGSTIK® header, order code 77319-104-08LF, 8 positions, dual row, 0.100" (2.54mm) pitch, 3A, gold GXT™ mating contacts, through-hole right-angle, solder termination.
Amphenol ICC BERGSTIK 77319-104-08LF Header, 8 Pos 2.54mm
MPN77319-104-08LF
Active
Amphenol ICC (FCI) BERGSTIK® header, order code 77319-104-08LF, 8 positions, dual row, 0.100" (2.54mm) pitch, 3A, gold GXT™ mating contacts, through-hole right-angle, solder termination.
$0.7925Ref. price · indicative, final on quote
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent supplier — new & surplus connector stock· Listing updated Aug 2026
Specifications
| Parameter | Value |
|---|---|
| Series | BERGSTIK® |
| Type | Male Pin |
| Mounting | Through Hole, Right Angle |
| Connector type | Header, Breakaway |
| Fastening type | Push-Pull |
| Current rating | 3A |
| Operating temperature | -65°C~130°C |
| Contact material | Phosphor Bronze |
| Insulation color | Black |
| Insulation height | 0.248\" (6.30mm) |
| Insulation material | Thermoplastic |
| Material flammability rating | UL94 V-0 |
All specifications
| Parameter | Value |
|---|---|
| Style | Board to Board |
| Package | Bag |
| Shrouding | Unshrouded |
| Termination | Solder |
| Contact shape | Square |
| Rows | 2 |
| Pitch | 0.100\" (2.54mm) |
| Positions | 8 |
| Row spacing - mating | 0.100\" (2.54mm) |
| Contact finish - post | Tin |
| Contact length - post | 0.111\" (2.82mm) |
| Contact finish - mating | Gold, GXT™ |
| Contact length - mating | 0.230\" (5.84mm) |
| Contact finish thickness - post | 78.7µin (2.00µm) |
| Contact finish thickness - mating | 30.0µin (0.76µm) |
Product details
Frequently asked questions
What is the connector style and series for 77319-104-08LF?
The connector style is Board to Board, and the series is BERGSTIK®.
What compliance documentation is available for 77319-104-08LF?
RoHS and REACH compliance documentation is available from the manufacturer.
