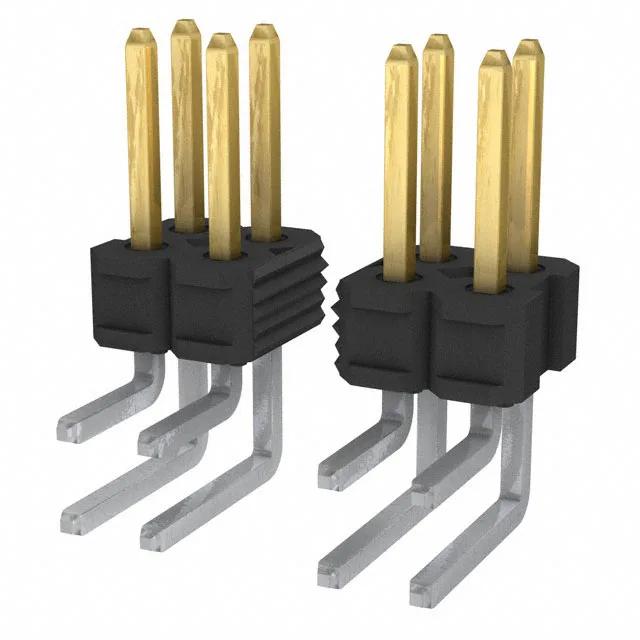

Amphenol ICC (FCI) BERGSTIK® header, breakaway, order code 77319-104-10, 10 positions, dual row, 0.100" (2.54 mm) pitch, gold GXT™ mating contacts, through-hole right-angle, solder termination, UL94 V-0.
| Parameter | Value |
|---|---|
| Series | BERGSTIK® |
| Type | Male Pin |
| Mounting | Through Hole, Right Angle |
| Connector type | Header, Breakaway |
| Fastening type | Push-Pull |
| Contact material | Phosphor Bronze |
| Insulation color | Black |
| Insulation height | 0.248\" (6.30mm) |
| Insulation material | Thermoplastic |
| Material flammability rating | UL94 V-0 |
| Style | Board to Board |
| Package | Bulk |
| Parameter | Value |
|---|---|
| Shrouding | Unshrouded |
| Termination | Solder |
| Contact shape | Square |
| Rows | 2 |
| Pitch | 0.100\" (2.54mm) |
| Positions | 10 |
| Row spacing - mating | 0.100\" (2.54mm) |
| Contact length - post | 0.111\" (2.82mm) |
| Contact finish - mating | Gold, GXT™ |
| Contact length - mating | 0.230\" (5.84mm) |
| Contact finish thickness - mating | 30.0µin (0.76µm) |
The 77319-104-10 is the 10-circuit member of Amphenol ICC (FCI)'s BERGSTIK® breakaway header line, configured as a dual-row through-hole right-angle board-to-board interconnect.
Amphenol ICC (FCI) lists the 77319-104-10 as Obsolete. No official successor or pin-compatible alternative is recorded from the original manufacturer. No stock-holding claim — sourced per request.
