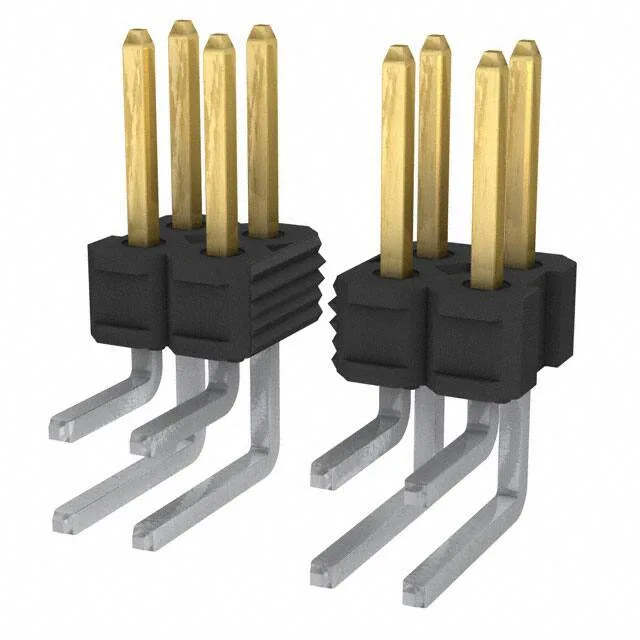

Amphenol ICC (FCI) BERGSTIK® unshrouded header, 32 positions, 0.100" (2.54 mm) pitch, dual-row, right-angle through-hole, male pin, gold GXT™ mating finish, 3 A, UL94 V-0.
| Parameter | Value |
|---|---|
| Series | BERGSTIK® |
| Type | Male Pin |
| Mounting | Through Hole, Right Angle |
| Connector type | Header, Breakaway |
| Fastening type | Push-Pull |
| Current rating | 3A |
| Operating temperature | -65°C~130°C |
| Contact material | Phosphor Bronze |
| Insulation color | Black |
| Insulation height | 0.248\" (6.30mm) |
| Insulation material | Thermoplastic |
| Material flammability rating | UL94 V-0 |
| Parameter | Value |
|---|---|
| Style | Board to Board |
| Package | Bulk |
| Shrouding | Unshrouded |
| Termination | Solder |
| Contact shape | Square |
| Rows | 2 |
| Pitch | 0.100\" (2.54mm) |
| Positions | 32 |
| Row spacing - mating | 0.100\" (2.54mm) |
| Contact finish - post | Tin |
| Contact length - post | 0.115\" (2.92mm) |
| Contact finish - mating | Gold, GXT™ |
| Contact length - mating | 0.318\" (8.08mm) |
| Contact finish thickness - post | 78.7µin (2.00µm) |
| Contact finish thickness - mating | 15.0µin (0.38µm) |
The mating contacts are plated with 15.0 µinch (0.38 µm) of gold GXT™ over nickel, while the solder tails get a 78.7 µinch (2.00 µm) tin finish. For a 32-position header carrying signal-level loads, the 3 A ceiling is comfortable; for power distribution, derate per the application's ambient temperature.
The base product number is 77319, and the part ships in bulk packaging.
The pitch is 0.100" (2.54 mm) on both the row spacing and between rows. It has 32 positions, all loaded, in a dual-row configuration.
RoHS compliance is standard for Amphenol ICC (FCI) BERGSTIK headers. The contact finish—gold GXT on the mating face and tin on the tails—is RoHS-compatible. Confirm with the factory datasheet for your specific compliance documentation.
