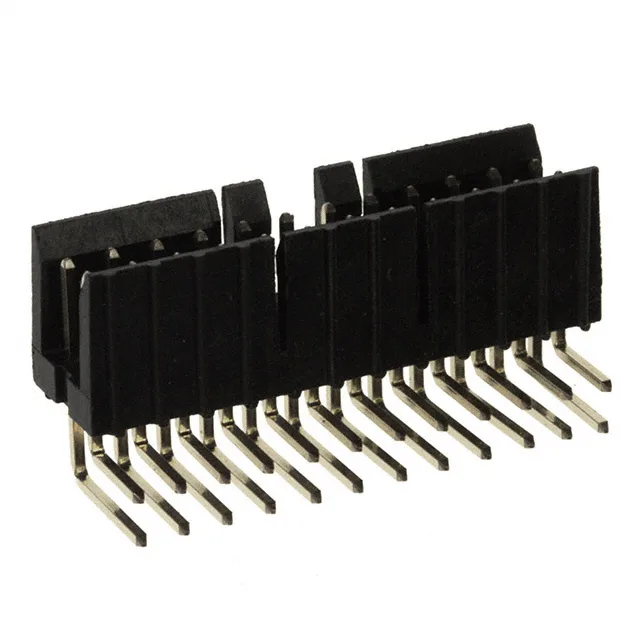

Amphenol ICC (FCI) Mini-PV™, Basics+ header, 24 positions, 0.100" (2.54mm) pitch, through-hole right-angle, shrouded 2-wall, friction lock, male pin, 30.0µin gold plating, UL94 V-0, active.
| Parameter | Value |
|---|---|
| Series | Mini-PV™, Basics+ |
| Type | Male Pin |
| Mounting | Through Hole, Right Angle |
| Connector type | Header |
| Fastening type | Friction Lock |
| Contact material | Phosphor Bronze |
| Insulation color | Black |
| Insulation height | 0.303\" (7.70mm) |
| Material flammability rating | UL94 V-0 |
| Style | Board to Cable/Wire |
| Package | Bulk |
| Features | Keying Slot |
| Parameter | Value |
|---|---|
| Shrouding | Shrouded - 2 Wall |
| Termination | Solder |
| Contact shape | Square |
| Rows | 2 |
| Pitch | 0.100\" (2.54mm) |
| Positions | 24 |
| Row spacing - mating | 0.100\" (2.54mm) |
| Contact length - post | 0.120\" (3.05mm) |
| Contact finish - mating | Gold or Gold, GXT™ |
| Contact length - mating | 0.230\" (5.84mm) |
| Contact finish thickness - mating | 30.0µin (0.76µm) |
The 78207-124HLF: The shrouded 2-wall design protects the pins during blind mating and prevents the plug from skewing off the row.
For higher-vibration environments, the lock works with the plug's own latch; the pair stays mated until you deliberately pull the tab.
Sourced through independent distribution channels. No stock-holding claim; quoted per order.
No stock-holding claim; quoted per order.
The mating pitch is 0.100" (2.54mm) — the same as the row spacing, so the footprint is a standard 2×12 grid.
Yes, the header includes a friction lock on the housing that holds the mating plug in place under moderate vibration.
