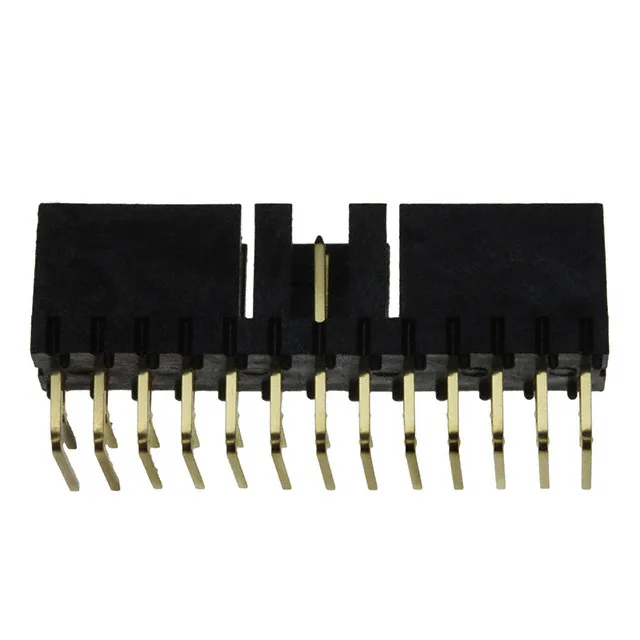

Shrouded right-angle header, 26 circuits
The 78207-126HLF is the 26-circuit member of Amphenol ICC (FCI)'s Mini-PV™, Basics+ shrouded header line, terminated through-hole right-angle with a friction lock.
Amphenol ICC (FCI) Mini-PV™, Basics+ header, order code 78207-126HLF, 26 positions, dual row, 0.100" (2.54mm) pitch, gold or Gold, GXT™ mating contacts, through-hole right-angle, solder termination, shrouded - 2 wall, friction lock.
$6.7617Ref. price · indicative, final on quote
StockContact for availability
Lead timeIn Stock wk
MOQ1 pcs
- New & original stockTraceable channels only — no mixed lots, no re-taped reels.
- Factory packaging where availableSealed reels, trays and bags; cut quantities always stated on the quote.
- Photo-verified countsEvery line counted and photographed before the box closes.
- PayPal buyer protectionPay by T/T, PayPal or Payoneer — card payments covered end to end.
Specifications
| Parameter | Value |
|---|---|
| Series | Mini-PV™, Basics+ |
| Gender | Male Pin |
| Mounting type | Through Hole, Right Angle |
| Connector type | Header |
| Fastening type | Friction Lock |
| Contact material | Phosphor Bronze |
| Insulation color | Black |
| Insulation height | 0.303\" (7.70mm) |
| Material flammability rating | UL94 V-0 |
| Style | Board to Cable/Wire |
| Package | Bulk |
| Features | Keying Slot |
| Shrouding | Shrouded - 2 Wall |
| Termination | Solder |
| Contact shape | Square |
| Rows | 2 |
| Pitch | 0.100\" (2.54mm) |
| Positions | 26 |
| Row spacing - mating | 0.100\" (2.54mm) |
| Contact length - post | 0.120\" (3.05mm) |
| Contact finish - mating | Gold or Gold, GXT™ |
| Contact length - mating | 0.230\" (5.84mm) |
| Contact finish thickness - mating | 30.0µin (0.76µm) |
Product details
Frequently asked questions
Where can I buy 78207-126HLF and how do I get a price?
The 78207-126HLF is orderable under the listed part number.
