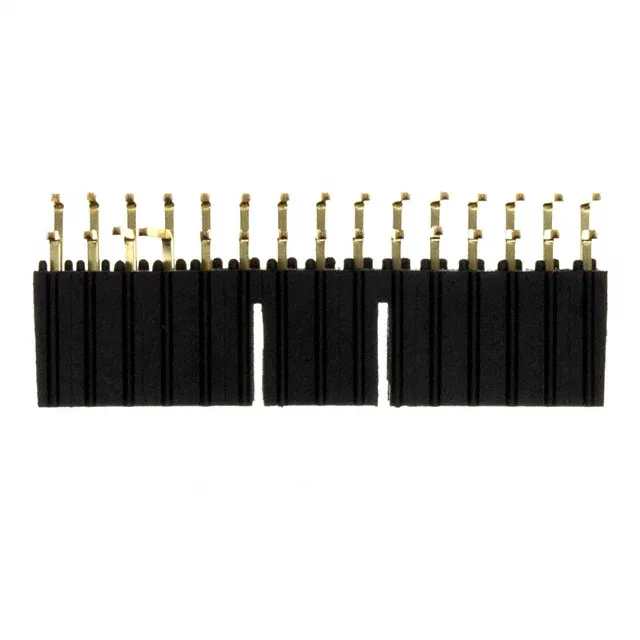

78207-130HLF — Amphenol product photo
Amphenol

78207-130HLF Pin Header – 30 Pos, 2.54mm Pitch, RA, Gold

MPN78207-130HLF
Active

Amphenol ICC (FCI) Mini-PV™, Basics+ series, 30-position dual-row shrouded header, 0.100" (2.54mm) pitch, through-hole right-angle solder termination, 30µin gold-plated square pins, friction lock, UL94 V-0 black housing.

$3.4700Ref. price · indicative, final on quote
78207-130HLF datasheet
StockContact for availability
Lead timeIn Stock wk
MOQ1 pcs
  • New & original stockTraceable channels only — no mixed lots, no re-taped reels.
  • Factory packaging where availableSealed reels, trays and bags; cut quantities always stated on the quote.
  • Photo-verified countsEvery line counted and photographed before the box closes.
  • PayPal buyer protectionPay by T/T, PayPal or Payoneer — card payments covered end to end.
How we verify every order →

Specifications

78207-130HLF Technical Specifications
ParameterValue
SeriesMini-PV™, Basics+
GenderMale Pin
Mounting typeThrough Hole, Right Angle
Connector typeHeader
Fastening typeFriction Lock
Contact materialPhosphor Bronze
Insulation colorBlack
Insulation height0.303\" (7.70mm)
Material flammability ratingUL94 V-0
StyleBoard to Cable/Wire
PackageBulk
FeaturesKeying Slot
ShroudingShrouded - 2 Wall
TerminationSolder
Contact shapeSquare
Rows2
Pitch0.100\" (2.54mm)
Positions30
Row spacing - mating0.100\" (2.54mm)
Contact length - post0.120\" (3.05mm)
Contact finish - matingGold or Gold, GXT™
Contact length - mating0.230\" (5.84mm)
Contact finish thickness - mating30.0µin (0.76µm)

Product details

Right-Angle Shrouded Header for Wire-to-Board

The 78207-130HLF: This is a 30-position, dual-row header from the Mini-PV™ series by Amphenol ICC (FCI), designed for wire-to-board applications where a reliable, keyed connection is needed.

Friction Lock and Housing Ratings

A friction lock on the header holds the mating housing in place — sufficient for moderate vibration environments where a positive latch is needed but a full secondary lock is not required.

It is RoHS compliant per current directive. Sourced through independent distribution; quoted to order against your BOM quantity.

Frequently asked questions

Is 78207-130HLF RoHS compliant?

Yes, it is listed as RoHS Compliant.
