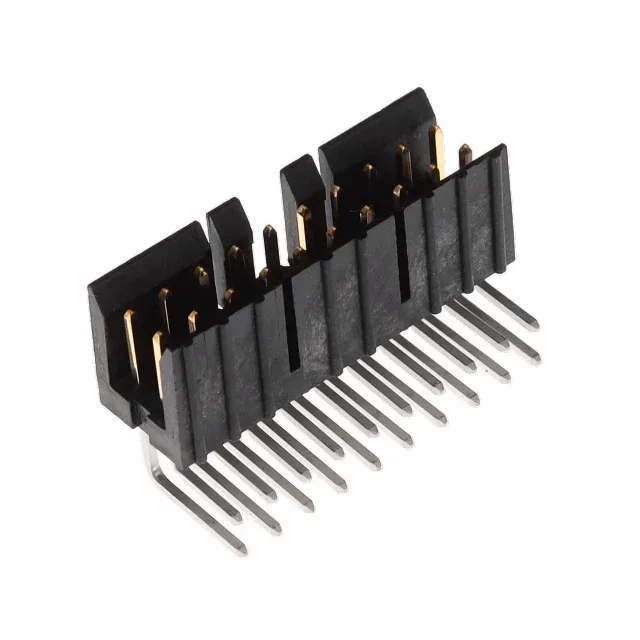

78207-220HLF Amphenol ICC (FCI) 20-Pin Header 0.100" Pitch

MPN78207-220HLF
Active

Amphenol ICC (FCI) Mini-PV™ Basics+ series, 78207-220HLF, 20-position dual-row shrouded header, 0.100" (2.54mm) pitch, right-angle through-hole, friction lock, 15.0µin gold mating finish, UL94 V-0 black housing.

$1.9100Ref. price · indicative, final on quote
78207-220HLF datasheet
StockContact for availability
Lead timeIn Stock wk
MOQ1 pcs
  • New & original stockTraceable channels only — no mixed lots, no re-taped reels.
  • Factory packaging where availableSealed reels, trays and bags; cut quantities always stated on the quote.
  • Photo-verified countsEvery line counted and photographed before the box closes.
  • PayPal buyer protectionPay by T/T, PayPal or Payoneer — card payments covered end to end.
How we verify every order →

Specifications

78207-220HLF Technical Specifications
ParameterValue
SeriesMini-PV™, Basics+
GenderMale Pin
Mounting typeThrough Hole, Right Angle
Connector typeHeader
Fastening typeFriction Lock
Contact materialPhosphor Bronze
Insulation colorBlack
Insulation height0.303\" (7.70mm)
Material flammability ratingUL94 V-0
StyleBoard to Cable/Wire
PackageBulk
FeaturesKeying Slot
ShroudingShrouded - 2 Wall
TerminationSolder
Contact shapeSquare
Rows2
Pitch0.100\" (2.54mm)
Positions20
Row spacing - mating0.100\" (2.54mm)
Contact length - post0.120\" (3.05mm)
Contact finish - matingGold or Gold, GXT™
Contact length - mating0.230\" (5.84mm)
Contact finish thickness - mating15.0µin (0.38µm)

Product details

20 Circuits, 0.100" Pitch — Board-to-Wire Fit

The 78207-220HLF: This is a 20-position, dual-row shrouded header from the Mini-PV™ Basics+ series, designed for board-to-wire applications. The friction lock on the shroud holds the mating housing in place without a separate latch or screw, reducing assembly time on the harness line.

Gold on the Mating Face, Through-Hole Solder Tails

Phosphor bronze contact material provides consistent spring force over the rated mating cycles, with good resistance to stress relaxation at elevated temperatures.

Sourcing and Lifecycle — Active, RoHS, Bulk Packaging

It is RoHS compliant and ships in bulk packaging. Quoted to order against your BOM quantity.

Frequently asked questions

What is the mating connector for 78207-220HLF?

This header mates with Mini-PV™ crimp-socket housings that accept 0.100" (2.54mm) pitch contacts. The friction lock on the shroud engages the matching ramp on the receptacle housing.

Is 78207-220HLF obsolete or EOL?

No — the lifecycle status is Active.
