The 78208-103HLF: The solder tail extends 0.120" (3.05mm) below the insulator — a standard length for through-hole soldering on 1.6mm-thick PCBs. The 0.100" pitch and single-row layout keep the board footprint compact, with the right-angle body adding 0.203" (5.16mm) of height above the board surface. The keying slot in the shroud prevents incorrect mating orientation, which is helpful when multiple similar headers sit on the same board.

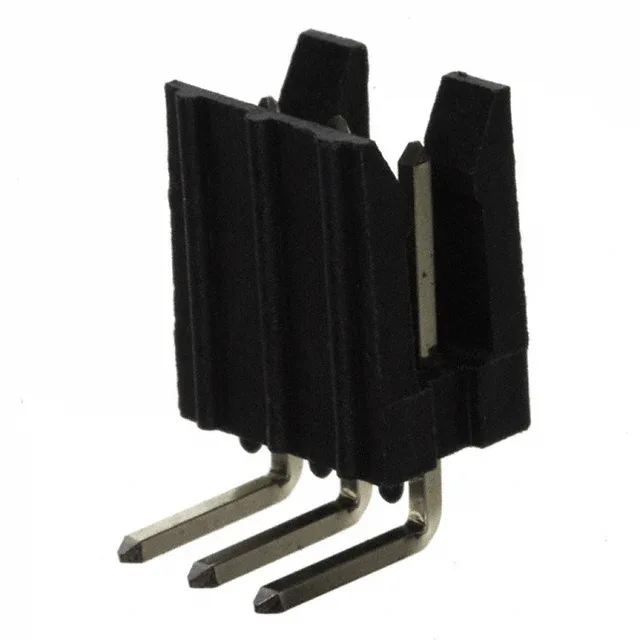

78208-103HLF Amphenol ICC (FCI) Mini-PV™ Header, 3 Pos
MPN78208-103HLF
Active
Amphenol ICC (FCI) Mini-PV™, Basics+ series header, 3 positions, 0.100" (2.54mm) pitch, right-angle through-hole, shrouded 2-wall, friction lock, 30.0µin gold mating finish, UL94 V-0.
$0.8000Ref. price · indicative, final on quote
RoHSRoHS Compliant
SeriesMini-PV™, Basics+
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Aug 2026
Specifications
| Parameter | Value |
|---|---|
| Series | Mini-PV™, Basics+ |
| Type | Male Pin |
| Mounting | Through Hole, Right Angle |
| Connector type | Header |
| Fastening type | Friction Lock |
| Operating temperature | -40°C~105°C |
| Contact material | Phosphor Bronze |
| Insulation color | Black |
| Insulation height | 0.203\" (5.16mm) |
| Insulation material | Polycyclohexylenedimethylene Terephthalate (PCT), Glass Filled |
| Material flammability rating | UL94 V-0 |
| Style | Board to Cable/Wire |
All specifications
| Parameter | Value |
|---|---|
| Package | Bulk |
| Features | Keying Slot |
| Shrouding | Shrouded - 2 Wall |
| Termination | Solder |
| Contact shape | Square |
| Rows | 1 |
| Pitch | 0.100\" (2.54mm) |
| Positions | 3 |
| Contact length - post | 0.120\" (3.05mm) |
| Contact finish - mating | Gold or Gold, GXT™ |
| Contact length - mating | 0.230\" (5.84mm) |
| Contact finish thickness - mating | 30.0µin (0.76µm) |
Product details
Frequently asked questions
Where can I buy 78208-103HLF available via RFQ confirmation?
Availability and current pricing confirmed at quote time.
