Contact system and board fit
The 78208-104 is the 4-circuit member of Amphenol ICC (FCI)'s Mini-PV™, Basics+ shrouded header line, a board-to-cable/wire interconnect with a friction lock for mating retention.

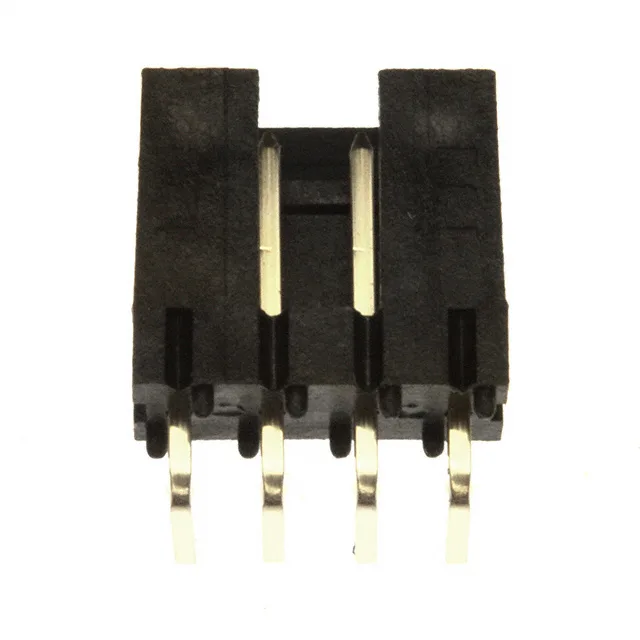

Amphenol ICC (FCI) 78208-104 Header, 4-Pos 2.54mm
MPN78208-104
Active
Amphenol ICC (FCI) Mini-PV™, Basics+ header, order code 78208-104, 4 positions, single row, 0.100" (2.54 mm) pitch, shrouded - 2 wall, friction lock, through-hole right-angle, solder termination, gold or gold GXT™ mating contacts.
$0.4981Ref. price · indicative, final on quote
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent supplier — new & surplus connector stock· Listing updated Aug 2026
Specifications
| Parameter | Value |
|---|---|
| Series | Mini-PV™, Basics+ |
| Type | Male Pin |
| Mounting | Through Hole, Right Angle |
| Connector type | Header |
| Fastening type | Friction Lock |
| Operating temperature | -40°C~105°C |
| Contact material | Phosphor Bronze |
| Insulation color | Black |
| Insulation height | 0.203\" (5.16mm) |
| Insulation material | Polycyclohexylenedimethylene Terephthalate (PCT), Glass Filled |
| Material flammability rating | UL94 V-0 |
| Style | Board to Cable/Wire |
All specifications
| Parameter | Value |
|---|---|
| Package | Bulk |
| Features | Keying Slot |
| Shrouding | Shrouded - 2 Wall |
| Termination | Solder |
| Contact shape | Square |
| Rows | 1 |
| Pitch | 0.100\" (2.54mm) |
| Positions | 4 |
| Contact length - post | 0.120\" (3.05mm) |
| Contact finish - mating | Gold or Gold, GXT™ |
| Contact length - mating | 0.230\" (5.84mm) |
| Contact finish thickness - mating | 30.0µin (0.76µm) |
Product details
Frequently asked questions
What compliance documentation is available for the 78208-104?
RoHS and REACH compliance documentation is provided by Amphenol ICC (FCI) per the series standard.
