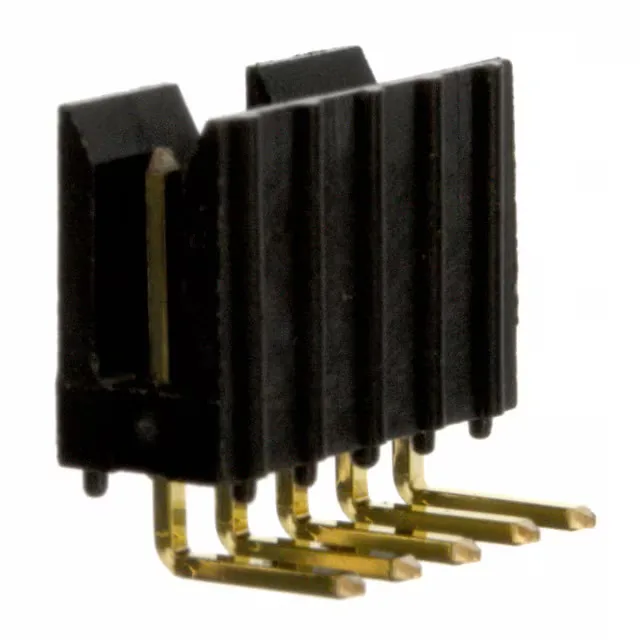

Amphenol ICC (FCI) Mini-PV™, Basics+ series, 78208-105HLF, 5-position single-row header, 0.100" (2.54mm) pitch, right-angle through-hole, shrouded 2-wall, friction lock, 30.0µin gold mating finish, UL94 V-0.
| Parameter | Value |
|---|---|
| Series | Mini-PV™, Basics+ |
| Type | Male Pin |
| Mounting | Through Hole, Right Angle |
| Connector type | Header |
| Fastening type | Friction Lock |
| Operating temperature | -40°C~105°C |
| Contact material | Phosphor Bronze |
| Insulation color | Black |
| Insulation height | 0.203\" (5.16mm) |
| Insulation material | Polycyclohexylenedimethylene Terephthalate (PCT), Glass Filled |
| Material flammability rating | UL94 V-0 |
| Style | Board to Cable/Wire |
| Parameter | Value |
|---|---|
| Package | Bulk |
| Features | Keying Slot |
| Shrouding | Shrouded - 2 Wall |
| Termination | Solder |
| Contact shape | Square |
| Rows | 1 |
| Pitch | 0.100\" (2.54mm) |
| Positions | 5 |
| Contact length - post | 0.120\" (3.05mm) |
| Contact finish - mating | Gold or Gold, GXT™ |
| Contact length - mating | 0.230\" (5.84mm) |
| Contact finish thickness - mating | 30.0µin (0.76µm) |
The 78208-105HLF: A friction lock on the housing holds the mating half in place against vibration — no secondary latch needed for moderate shock environments. The keying slot prevents mis-mating with non-keyed receptacles.
Yes — through-hole, right-angle termination, and a friction lock on the housing that retains the mating receptacle under vibration. The lock is a positive detent, not a secondary latch.
The 78208-106HLF is the 6-position sibling in the same Mini-PV™ series — same pitch, plating, mounting, and lock. If the board layout has room for one more pin, it's a direct footprint swap.
