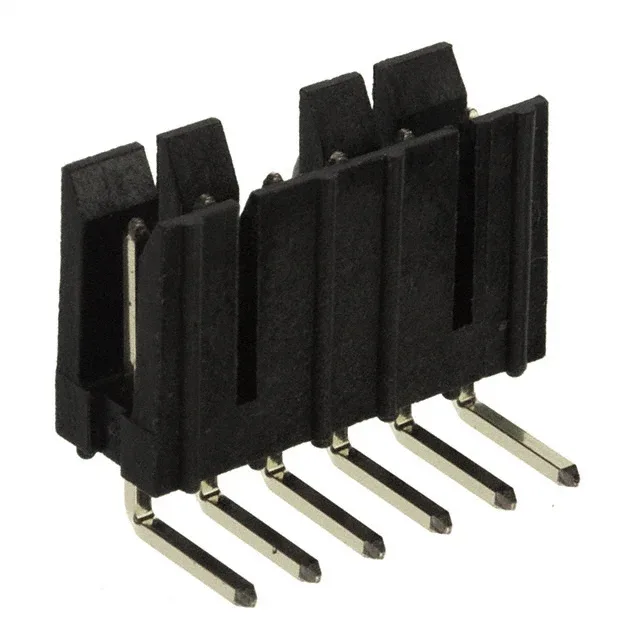

78208-106HLF Amphenol ICC Mini-PV™ Header, 6 Pos

MPN78208-106HLF
Active

Amphenol ICC (FCI) Mini-PV™, Basics+ series, 78208-106HLF, Board to Cable/Wire header, 6 circuits, single row, 0.100" (2.54mm) pitch, right-angle through-hole, shrouded 2-wall, friction lock, 30.0µin gold mating finish, UL94 V-0.

$1.4400Ref. price · indicative, final on quote
78208-106HLF datasheet
StockContact for availability
Lead time3-5 Days wk
MOQ1 pcs
  • New & original stockTraceable channels only — no mixed lots, no re-taped reels.
  • Factory packaging where availableSealed reels, trays and bags; cut quantities always stated on the quote.
  • Photo-verified countsEvery line counted and photographed before the box closes.
  • PayPal buyer protectionPay by T/T, PayPal or Payoneer — card payments covered end to end.
How we verify every order →

Specifications

78208-106HLF Technical Specifications
ParameterValue
SeriesMini-PV™, Basics+
GenderMale Pin
Mounting typeThrough Hole, Right Angle
Connector typeHeader
Fastening typeFriction Lock
Operating temperature-40°C~105°C
Contact materialPhosphor Bronze
Insulation colorBlack
Insulation height0.203\" (5.16mm)
Insulation materialPolycyclohexylenedimethylene Terephthalate (PCT), Glass Filled
Material flammability ratingUL94 V-0
StyleBoard to Cable/Wire
PackageBulk
FeaturesKeying Slot
ShroudingShrouded - 2 Wall
TerminationSolder
Contact shapeSquare
Rows1
Pitch0.100\" (2.54mm)
Positions6
Contact length - post0.120\" (3.05mm)
Contact finish - matingGold or Gold, GXT™
Contact length - mating0.230\" (5.84mm)
Contact finish thickness - mating30.0µin (0.76µm)

Product details

6-Position Right-Angle Header – Board Fit and Routing

The 78208-106HLF: Contact mating length is 0.230" (5.84mm) and the post length below the insulator is 0.120" (3.05mm) – the post length determines the through-hole solder tail protrusion and the board thickness the header can accommodate.

Gold Mating Finish and Temperature Range

At this plating thickness the header is rated for repeated mating cycles – suitable for field-service connections where the harness is disconnected quarterly or more often. The insulator is glass-filled PCT with a UL94 V-0 flammability rating – the housing will not sustain flame in equipment that requires a fire-rated enclosure.

Keying Slot and Mating Half

A keying slot in the housing prevents mis-mating with non-compatible receptacles – the header accepts only the matching Mini-PV™ receptacle that carries the corresponding key. The friction lock engages with the receptacle's locking ramp. For a complete wire-to-board connection, pair this header with the appropriate Mini-PV™ crimp receptacle housing and terminals.

Frequently asked questions

What is the mating connector for 78208-106HLF?

This header mates with a Mini-PV™ receptacle housing (same series) that accepts crimp terminals. Confirm the receptacle part number matches the 6-position, single-row, 0.100" pitch layout.

Is 78208-106HLF keyed or polarized?

Yes – the housing includes a keying slot that prevents incorrect insertion of the mating receptacle. The friction lock also provides a polarising feature: the header and receptacle can only mate in one orientation.
