0.100" Pitch, 7-Position Right-Angle Header with Friction Lock
Through-Hole Solder Tail and Board Fit
The bulk package suits high-volume assembly lines that feed pick-and-place or hand-load stations.
78208-107HLF Pin Header – 7 Pos, 0.100" Pitch, Right-Angle
MPN78208-107HLF
Active
Amphenol ICC (FCI) Mini-PV™, Basics+ series header, 7 positions, 0.100" (2.54mm) pitch, through-hole right-angle, male pin, shrouded 2-wall, friction lock, 30.0µin gold mating finish, UL94 V-0 black PCT housing.
$1.5600Ref. price · indicative, final on quote
RoHSRoHS Compliant
SeriesMini-PV™, Basics+
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent supplier — new & surplus connector stock· Listing updated Aug 2026
Specifications
| Parameter | Value |
|---|---|
| Series | Mini-PV™, Basics+ |
| Type | Male Pin |
| Mounting | Through Hole, Right Angle |
| Connector type | Header |
| Fastening type | Friction Lock |
| Operating temperature | -40°C~105°C |
| Contact material | Phosphor Bronze |
| Insulation color | Black |

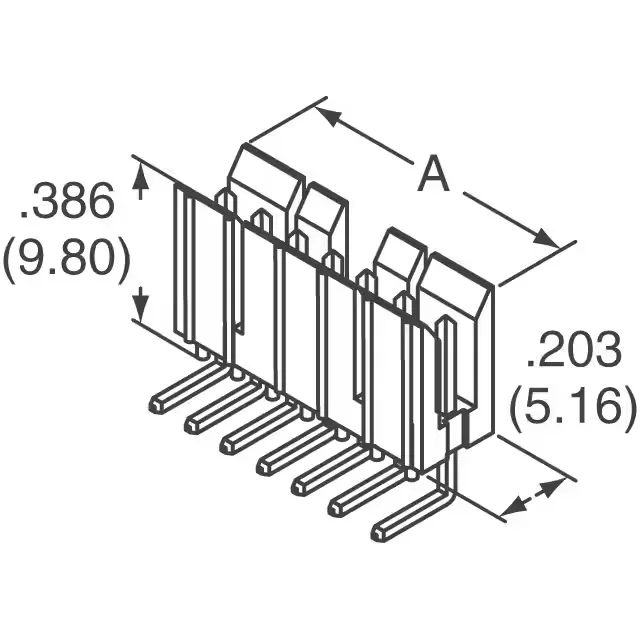

| Insulation height | 0.203\" (5.16mm) |
| Insulation material | Polycyclohexylenedimethylene Terephthalate (PCT), Glass Filled |
| Material flammability rating | UL94 V-0 |
| Style | Board to Cable/Wire |
All specifications
| Parameter | Value |
|---|---|
| Package | Bulk |
| Features | Keying Slot |
| Shrouding | Shrouded - 2 Wall |
| Termination | Solder |
| Contact shape | Square |
| Rows | 1 |
| Pitch | 0.100\" (2.54mm) |
| Positions | 7 |
| Contact length - post | 0.120\" (3.05mm) |
| Contact finish - mating | Gold or Gold, GXT™ |
| Contact length - mating | 0.230\" (5.84mm) |
| Contact finish thickness - mating | 30.0µin (0.76µm) |
Product details
Frequently asked questions
Where can I buy 78208-107HLF and how do I get a price?
No stock-holding claim is made — each order is sourced per your request.
What mates with this header?
This is a shrouded male pin header designed for board-to-cable/wire applications. The 0.100" pitch and 7-position single-row layout are standard across the Mini-PV™ series.
