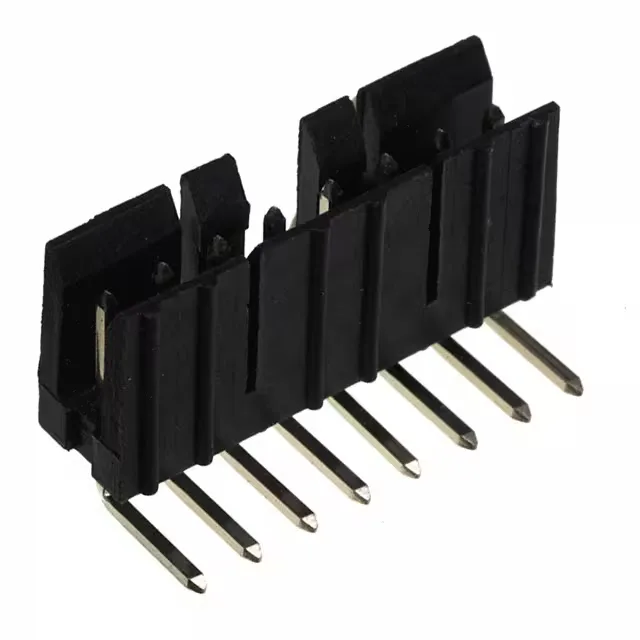

78208-108HLF — Amphenol product photo
Amphenol

78208-108HLF Amphenol ICC (FCI) 8-Pin Right-Angle Header

MPN78208-108HLF
Active

Amphenol ICC (FCI) Mini-PV™, Basics+ series, 8-position single-row header, 0.100" (2.54mm) pitch, through-hole right-angle, shrouded 2-wall, friction lock, gold-plated mating contacts, UL94 V-0 black PCT housing.

$1.7900Ref. price · indicative, final on quote
78208-108HLF datasheet
StockContact for availability
Lead timeIn Stock wk
MOQ1 pcs
  • New & original stockTraceable channels only — no mixed lots, no re-taped reels.
  • Factory packaging where availableSealed reels, trays and bags; cut quantities always stated on the quote.
  • Photo-verified countsEvery line counted and photographed before the box closes.
  • PayPal buyer protectionPay by T/T, PayPal or Payoneer — card payments covered end to end.
How we verify every order →

Specifications

78208-108HLF Technical Specifications
ParameterValue
SeriesMini-PV™, Basics+
GenderMale Pin
Mounting typeThrough Hole, Right Angle
Connector typeHeader
Fastening typeFriction Lock
Operating temperature-40°C~105°C
Contact materialPhosphor Bronze
Insulation colorBlack
Insulation height0.203\" (5.16mm)
Insulation materialPolycyclohexylenedimethylene Terephthalate (PCT), Glass Filled
Material flammability ratingUL94 V-0
StyleBoard to Cable/Wire
PackageBulk
FeaturesKeying Slot
ShroudingShrouded - 2 Wall
TerminationSolder
Contact shapeSquare
Rows1
Pitch0.100\" (2.54mm)
Positions8
Contact length - post0.120\" (3.05mm)
Contact finish - matingGold or Gold, GXT™
Contact length - mating0.230\" (5.84mm)
Contact finish thickness - mating30.0µin (0.76µm)

Product details

Active Production — Sourcing for the BOM Line

The 78208-108HLF: No stock-holding claim — quoted per RFQ.

Board Fit and Routing — Right-Angle, 2.54mm Pitch

8 positions, single row, all loaded. The 0.203" (5.16mm) insulation height and 0.230" (5.84mm) mating pin length define the mated stack height and receptacle engagement depth.

Mating Half and Retention — Shrouded with Friction Lock

Shrouded 2-wall header mates with a Mini-PV™ crimp receptacle housing.

The solder termination uses through-hole posts 0.120" (3.05mm) long — standard for wave-solder assembly.

Frequently asked questions

What is the mating half for 78208-108HLF?

This shrouded header mates with a Mini-PV™ crimp receptacle housing (single-row, 8-position). The friction lock and keying slot ensure correct orientation and retention.

What is the pitch and position count of 78208-108HLF?

0.100" (2.54mm) pitch, 8 positions, single row, all positions loaded.
