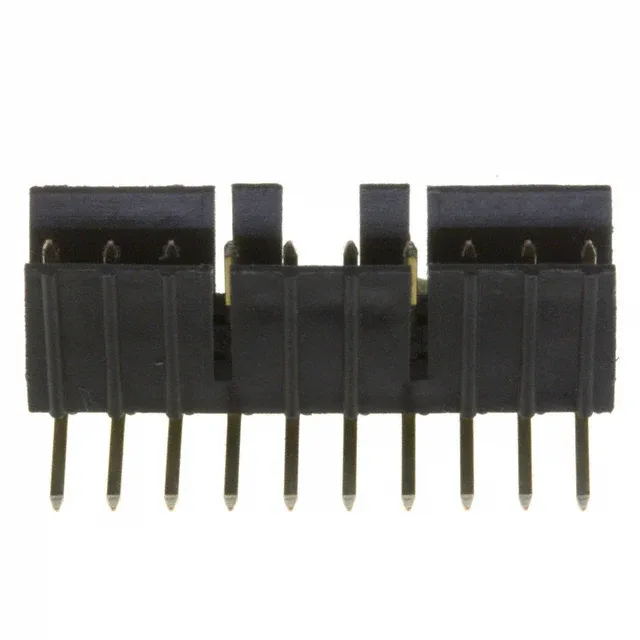

Amphenol ICC (FCI) Mini-PV™, Basics+ series, 78208-110HLF, 10-position single-row header, 0.100" (2.54mm) pitch, right-angle through-hole, shrouded 2-wall, friction lock, 30.0µin gold mating, UL94 V-0 black PCT housing.
| Parameter | Value |
|---|---|
| Series | Mini-PV™, Basics+ |
| Gender | Male Pin |
| Mounting type | Through Hole, Right Angle |
| Connector type | Header |
| Fastening type | Friction Lock |
| Operating temperature | -40°C~105°C |
| Contact material | Phosphor Bronze |
| Insulation color | Black |
| Insulation height | 0.203\" (5.16mm) |
| Insulation material | Polycyclohexylenedimethylene Terephthalate (PCT), Glass Filled |
| Material flammability rating | UL94 V-0 |
| Style | Board to Cable/Wire |
| Package | Bulk |
| Features | Keying Slot |
| Shrouding | Shrouded - 2 Wall |
| Termination | Solder |
| Contact shape | Square |
| Rows | 1 |
| Pitch | 0.100\" (2.54mm) |
| Positions | 10 |
| Contact length - post | 0.120\" (3.05mm) |
| Contact finish - mating | Gold or Gold, GXT™ |
| Contact length - mating | 0.230\" (5.84mm) |
| Contact finish thickness - mating | 30.0µin (0.76µm) |
The 78208-110HLF is a 10-position, single-row, right-angle header from the Mini-PV™, Basics+ series by Amphenol ICC (FCI).
The phosphor bronze base material provides good spring properties and corrosion resistance.
The 78208-110HLF is an active part sourced through independent distribution.
The pitch is 0.100" (2.54mm), the standard spacing for this connector class, which sets the PCB footprint and ensures compatibility with matching Mini-PV™ receptacles.
Yes, the 78208-110HLF is RoHS compliant.
The 78208-115HLF is a 15-position variant in the same series, with the same pitch, plating, and right-angle orientation. For a different circuit count, the 7-position (78208-107HLF) and 8-position (78208-108HLF) are also direct drop-in alternatives.
