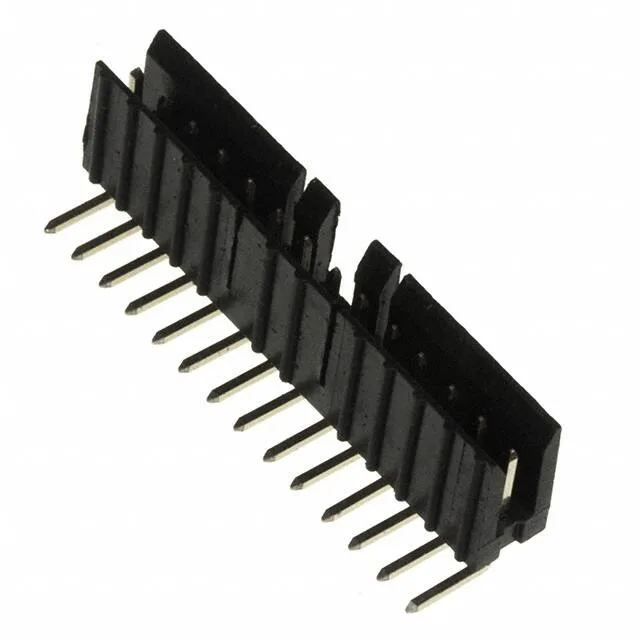

Amphenol ICC (FCI) Mini-PV™, Basics+ header, order code 78208-114HLF, 14 positions, single row, 0.100" (2.54 mm) pitch, shrouded - 2 wall, male pin, through-hole right-angle, solder termination, gold or gold GXT™ mating finish.
78208-114HLF Amphenol ICC (FCI) Header, 14 Pos, 0.100" Pitch
MPN78208-114HLF
Obsolete
Amphenol ICC (FCI) Mini-PV™, Basics+ header, order code 78208-114HLF, 14 positions, single row, 0.100" (2.54 mm) pitch, shrouded - 2 wall, male pin, through-hole right-angle, solder termination, gold or gold GXT™ mating finish.
$3.4000Ref. price · indicative, final on quote
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Series | Mini-PV™, Basics+ |
| Type | Male Pin |
| Mounting | Through Hole, Right Angle |
| Connector type | Header |
| Fastening type | Friction Lock |
| Operating temperature | -40°C~105°C |
| Contact material | Phosphor Bronze |
| Insulation color | Black |
| Insulation height | 0.203\" (5.16mm) |
| Insulation material | Polycyclohexylenedimethylene Terephthalate (PCT), Glass Filled |
| Material flammability rating | UL94 V-0 |
| Style | Board to Cable/Wire |
All specifications
| Parameter | Value |
|---|---|
| Package | Bulk |
| Features | Keying Slot |
| Shrouding | Shrouded - 2 Wall |
| Termination | Solder |
| Contact shape | Square |
| Rows | 1 |
| Pitch | 0.100\" (2.54mm) |
| Positions | 14 |
| Contact length - post | 0.120\" (3.05mm) |
| Contact finish - mating | Gold or Gold, GXT™ |
| Contact length - mating | 0.230\" (5.84mm) |
| Contact finish thickness - mating | 30.0µin (0.76µm) |
Product details
Frequently asked questions
What is the 78208-114HLF's style and series?
The style is Board to Cable/Wire; the series is Mini-PV™, Basics+.
What compliance documentation is available for the 78208-114HLF?
RoHS and REACH compliance data is available from Amphenol ICC (FCI) upon request.
