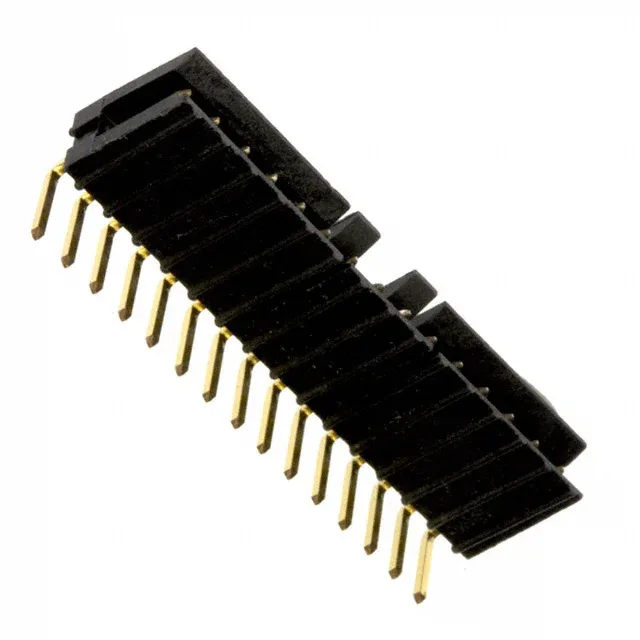

Amphenol ICC (FCI) Mini-PV™, Basics+ header, 78208-115HLF, 15 positions, single-row, 0.100" (2.54mm) pitch, through-hole right-angle, shrouded with friction lock, 30.0µin gold plating, UL94 V-0.
| Parameter | Value |
|---|---|
| Series | Mini-PV™, Basics+ |
| Type | Male Pin |
| Mounting | Through Hole, Right Angle |
| Connector type | Header |
| Fastening type | Friction Lock |
| Operating temperature | -40°C~105°C |
| Contact material | Phosphor Bronze |
| Insulation color | Black |
| Insulation height | 0.203\" (5.16mm) |
| Insulation material | Polycyclohexylenedimethylene Terephthalate (PCT), Glass Filled |
| Material flammability rating | UL94 V-0 |
| Style | Board to Cable/Wire |
| Parameter | Value |
|---|---|
| Package | Bulk |
| Features | Keying Slot |
| Shrouding | Shrouded - 2 Wall |
| Termination | Solder |
| Contact shape | Square |
| Rows | 1 |
| Pitch | 0.100\" (2.54mm) |
| Positions | 15 |
| Contact length - post | 0.120\" (3.05mm) |
| Contact finish - mating | Gold or Gold, GXT™ |
| Contact length - mating | 0.230\" (5.84mm) |
| Contact finish thickness - mating | 30.0µin (0.76µm) |
It is a board-to-cable/wire connector with a shrouded 2-wall housing and a friction lock for secure mating.
The phosphor bronze base material provides good spring properties for consistent contact force.
The 15-position variant is the choice when the harness requires more signal lines in a single row without moving to a dual-row header.
Yes, the 78208-115HLF is RoHS Compliant per the manufacturer's designation.
The exact mating housing part number depends on the wire count and keying — confirm with the 78208 series receptacle listings.
