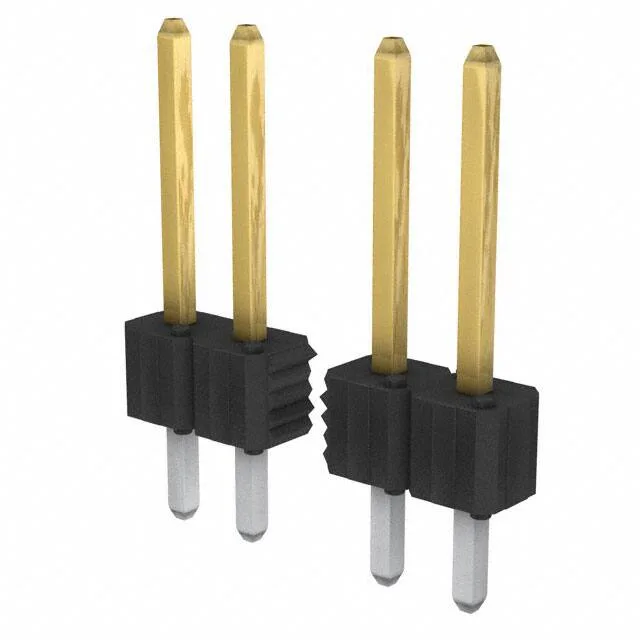

78229-130 BERGSTIK® II Header – 30-Pin, 0.100" Pitch

MPN78229-130
Active

Amphenol ICC (FCI) BERGSTIK® II 78229-130 unshrouded header, 30 positions, single row, 0.100" (2.54mm) pitch, through-hole press-fit/solder termination, gold or GXT™ plating, UL94 V-0.

$1.5254Ref. price · indicative, final on quote
78229-130 datasheet
StockContact for availability
Lead timeIn Stock wk
MOQ1 pcs
  • New & original stockTraceable channels only — no mixed lots, no re-taped reels.
  • Factory packaging where availableSealed reels, trays and bags; cut quantities always stated on the quote.
  • Photo-verified countsEvery line counted and photographed before the box closes.
  • PayPal buyer protectionPay by T/T, PayPal or Payoneer — card payments covered end to end.
How we verify every order →

Specifications

78229-130 Technical Specifications
ParameterValue
SeriesBERGSTIK® II
GenderMale Pin
Mounting typeThrough Hole
Connector typeHeader
Fastening typePush-Pull
Contact materialPhosphor Bronze
Insulation colorBlack
Insulation height0.100\" (2.54mm)
Material flammability ratingUL94 V-0
StyleBoard to Board
PackageBag
ShroudingUnshrouded
TerminationPress-Fit, Solder
Contact shapeSquare
Rows1
Pitch0.100\" (2.54mm)
Positions30
Contact length - post0.120\" (3.05mm)
Overall contact length0.538\" (13.67mm)
Contact finish - matingGold or Gold, GXT™
Contact length - mating0.318\" (8.08mm)
Contact finish thickness - mating30.0µin (0.76µm)

Product details

Board Fit and Termination – Press-Fit in a Through-Hole Header

The 78229-130: Termination is listed as both Press-Fit and Solder. The press-fit option is unusual for a through-hole header – it means the compliant pin can be pressed into a plated through-hole without solder, common in backplane or high-reliability assemblies where rework is a consideration. The solder option allows conventional wave-solder attachment.

Contact Plating and Mating Durability

In a board-to-board application where the header stays mated for the product life, the gold layer resists corrosion and maintains contact resistance.

Physical Dimensions and Mating Half

Frequently asked questions

Where can I buy 78229-130?

The 78229-130 is available to order through this storefront. It is sourced per RFQ – submit a request for quote and availability will be confirmed at that time.

What is the termination style for 78229-130?

The termination is listed as Press-Fit, Solder. The press-fit option allows solderless assembly into plated through-holes; the solder option is for conventional wave-solder attachment.

What is the pitch of 78229-130?

The mating pitch is 0.100" (2.54mm) – standard for this BERGSTIK® II series and compatible with most 0.100" pitch receptacles.

What is the closest pin-compatible alternative to 78229-130?

The 78229 base number covers the single-row unshrouded header family; other positions within that family share the same pitch and footprint but differ in pin count.
