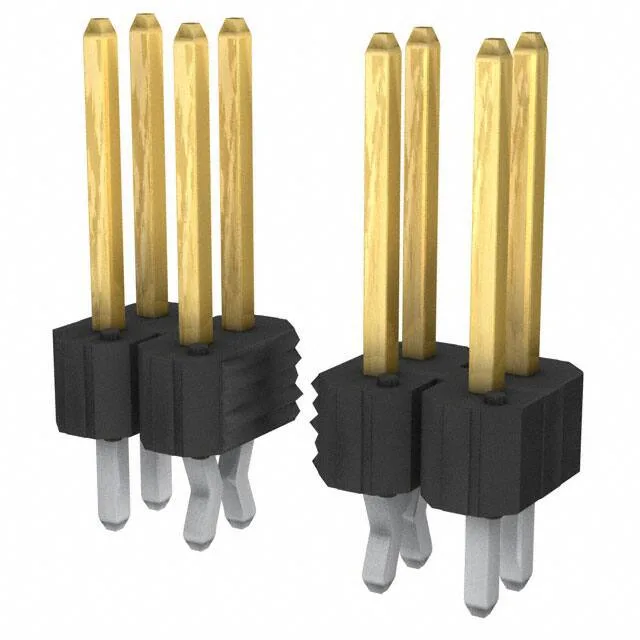

78548-116HLF Amphenol ICC BERGSTIK II Header, 16 Pos

MPN78548-116HLF
Active

Amphenol ICC (FCI) BERGSTIK® II, 78548-116HLF, unshrouded dual-row header, 16 positions, 0.100" (2.54 mm) pitch, through-hole, kinked-pin solder termination, 30.0 µin gold or GXT plating on mating contact.

$0.8591Ref. price · indicative, final on quote
78548-116HLF datasheet
StockContact for availability
Lead timeIn Stock wk
MOQ1 pcs
  • New & original stockTraceable channels only — no mixed lots, no re-taped reels.
  • Factory packaging where availableSealed reels, trays and bags; cut quantities always stated on the quote.
  • Photo-verified countsEvery line counted and photographed before the box closes.
  • PayPal buyer protectionPay by T/T, PayPal or Payoneer — card payments covered end to end.
How we verify every order →

Specifications

78548-116HLF Technical Specifications
ParameterValue
SeriesBERGSTIK® II
GenderMale Pin
Mounting typeThrough Hole
Connector typeHeader
Fastening typePush-Pull
Contact materialPhosphor Bronze
Insulation colorBlack
Insulation height0.100\" (2.54mm)
Insulation materialPolycyclohexylenedimethylene Terephthalate (PCT)
Material flammability ratingUL94 V-0
StyleBoard to Board
PackageBulk
ShroudingUnshrouded
TerminationKinked Pin, Solder
Contact shapeSquare
Rows2
Pitch0.100\" (2.54mm)
Positions16
Row spacing - mating0.100\" (2.54mm)
Contact length - post0.120\" (3.05mm)
Overall contact length0.538\" (13.67mm)
Contact finish - matingGold or Gold, GXT™
Contact length - mating0.318\" (8.08mm)
Contact finish thickness - mating30.0µin (0.76µm)
