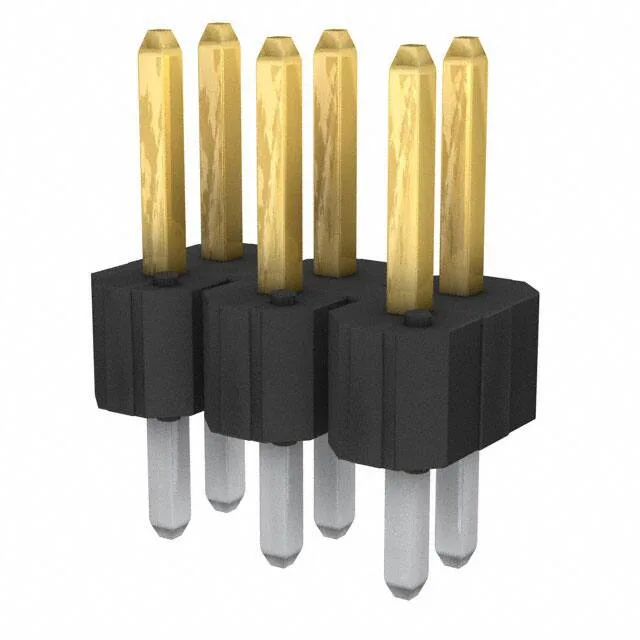

79425-106HLF — Amphenol product photo
Amphenol

79425-106HLF BERGSTIK II Header, 6 Pos, 0.100" Pitch

MPN79425-106HLF
Obsolete

Amphenol BERGSTIK® II unshrouded header, 79425-106HLF, 6 positions, 2 rows, 0.100" pitch, 5 A, 110 V, through-hole solder, 30.0 µin gold plating.

$1.3900Ref. price · indicative, final on quote
79425-106HLF datasheet
StockContact for availability
MOQ1 pcs
  • New & original stockTraceable channels only — no mixed lots, no re-taped reels.
  • Factory packaging where availableSealed reels, trays and bags; cut quantities always stated on the quote.
  • Photo-verified countsEvery line counted and photographed before the box closes.
  • PayPal buyer protectionPay by T/T, PayPal or Payoneer — card payments covered end to end.
How we verify every order →

Specifications

79425-106HLF Technical Specifications
ParameterValue
SeriesBERGSTIK® II
GenderMale Pin
Mounting typeThrough Hole
Connector typeHeader
Fastening typePush-Pull
Voltage rating110V
Current rating5A
Contact materialPhosphor Bronze
Insulation colorBlack
Insulation height0.100\" (2.54mm)
Material flammability ratingUL94 V-0
StyleBoard to Board
PackageBag
ShroudingUnshrouded
TerminationSolder
Contact shapeSquare
Rows2
Pitch0.100\" (2.54mm)
Positions6
Row spacing - mating0.100\" (2.54mm)
Contact length - post0.120\" (3.05mm)
Overall contact length0.410\" (10.41mm)
Contact finish - matingGold or Gold, GXT™
Contact length - mating0.190\" (4.83mm)
Contact finish thickness - mating30.0µin (0.76µm)

Product details

The Amphenol BERGSTIK® II 79425-106HLF is a 6-position, dual-row unshrouded male pin header on a 0.100" (2.54 mm) pitch — a standard board-to-board interconnect footprint that matches a wide range of female socket strips and IDC receptacles. All 6 positions are loaded, giving you a full 2x3 grid for signal or low-power routing.

Finding a Replacement

There is no official manufacturer-declared successor order code for the 79425-106HLF. The BERGSTIK® II series is broad — Amphenol still produces many active 0.100" pitch unshrouded headers in 2x3 configurations with 30.0 µin gold plating. The base product number 79425 covers a family of dual-row headers; a current-production variant with the same 6 positions, 0.100" pitch, and gold plating would be the natural cross-shop candidate. Confirm the overall contact length (0.410") and post length (0.120") match your board stack-up before swapping — those dimensions vary across the series.

Frequently asked questions

What is the alternative for 79425-106HLF?

There is no official manufacturer replacement order code. A current-production BERGSTIK® II header with the same 6 positions, 0.100" pitch, dual rows, and 30.0 µin gold plating is the closest cross-shop candidate — verify the overall contact length and post length match your board stack-up.

What is the pitch of 79425-106HLF?

The mating pitch is 0.100" (2.54 mm), with the same 0.100" row spacing — a standard footprint that matches most 0.100" female socket strips and IDC connectors.
