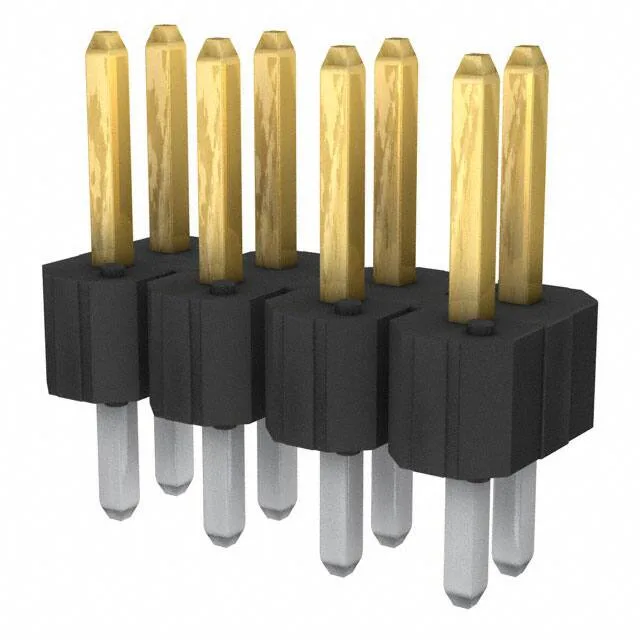

The Amphenol 79425-108HLF is an 8-position, dual-row unshrouded header from the BERGSTIK® II series, designed for board-to-board interconnect on a standard 0.100" (2.54mm) pitch grid. The 0.100" pitch and 0.100" row spacing mean this header lands on a standard DIP footprint — no special pad geometry needed. All 8 positions are loaded with square male pins in phosphor bronze, with a 30.0µin (0.76µm) gold or GXT™ plating on the mating surface. Rated 5A per contact at 110V, with a UL94 V-0 black insulation body.
This is a through-hole solder-terminated header — the 0.120" (3.05mm) post length suits standard PCB thicknesses. Mates with any standard 0.100" pitch dual-row receptacle housing that accepts 0.025" square pins — a common match is the BERGSTIK II receptacle series.
