It uses a 0.100" (2.54 mm) pitch on both rows and contacts, which matches the standard 0.100" grid for prototyping and production layouts. The through-hole solder tails — 0.200" (5.08 mm) long — suit it for standard PCB thicknesses, and the 0.430" (10.92 mm) mating pin length gives a solid wipe depth into a matching receptacle.

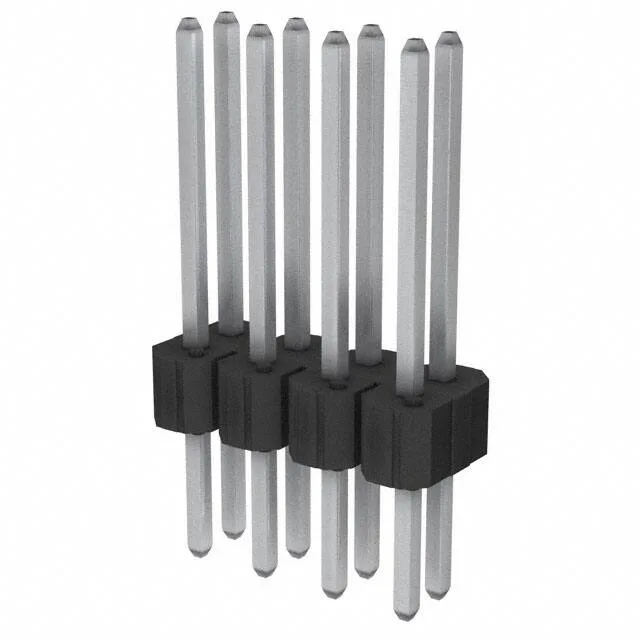

Amphenol FCI BERGSTIK II, Board to Board Header, 79821-408HLF, 8 Positions, 2 Rows, 0.100" (2.54mm) Pitch, Through Hole, Solder, Tin Contacts, 5A.
$1.9800Ref. price · indicative, final on quote
StockContact for availability
Lead timeIn Stock wk
MOQ1 pcs
- New & original stockTraceable channels only — no mixed lots, no re-taped reels.
- Factory packaging where availableSealed reels, trays and bags; cut quantities always stated on the quote.
- Photo-verified countsEvery line counted and photographed before the box closes.
- PayPal buyer protectionPay by T/T, PayPal or Payoneer — card payments covered end to end.
Specifications
| Parameter | Value |
|---|---|
| Series | BERGSTIK® II |
| Gender | Male Pin |
| Mounting type | Through Hole |
| Connector type | Header |
| Fastening type | Push-Pull |
| Voltage rating | 110V |
| Current rating | 5A |
| Contact material | Phosphor Bronze |
| Insulation color | Black |
| Insulation height | 0.100\" (2.54mm) |
| Material flammability rating | UL94 V-0 |
| Style | Board to Board |
| Package | Bag |
| Shrouding | Unshrouded |
| Termination | Solder |
| Contact shape | Square |
| Rows | 2 |
| Pitch | 0.100\" (2.54mm) |
| Positions | 8 |
| Row spacing - mating | 0.100\" (2.54mm) |
| Contact finish - post | Tin |
| Contact length - post | 0.200\" (5.08mm) |
| Overall contact length | 0.730\" (18.54mm) |
| Contact finish - mating | Tin |
| Contact length - mating | 0.430\" (10.92mm) |
| Contact finish thickness - mating | 100.0µin (2.54µm) |
Product details
Frequently asked questions
What is the current rating of 79821-408HLF?
The header is rated 5 A per circuit at the stated voltage of 110 V, with tin-plated phosphor bronze contacts.
