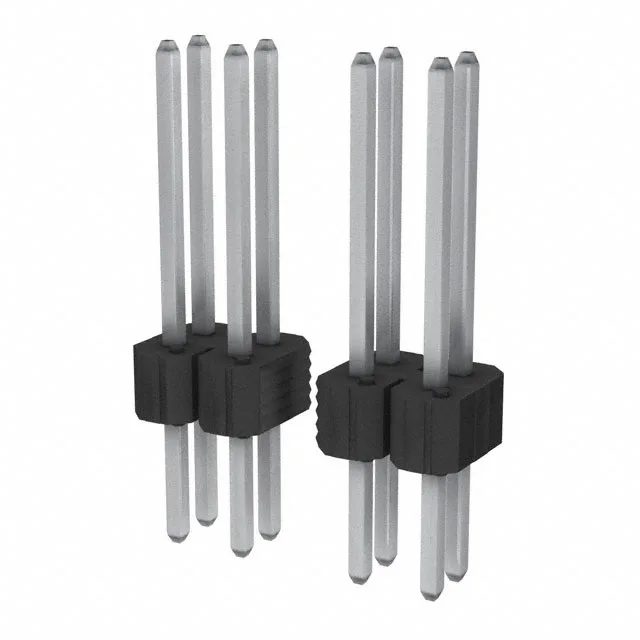

79821-420HLF — Amphenol product photo
Amphenol

Amphenol FCI BERGSTIK II 79821-420HLF, 20-Pin Header

MPN79821-420HLF
Active

Amphenol FCI BERGSTIK® II, Header, 20 Positions, 2 Rows, 0.100" (2.54mm) Pitch, Through Hole, Solder, Tin, 5A, 110V, Unshrouded, UL94 V-0.

$2.3700Ref. price · indicative, final on quote
79821-420HLF datasheet
StockContact for availability
MOQ1 pcs
  • New & original stockTraceable channels only — no mixed lots, no re-taped reels.
  • Factory packaging where availableSealed reels, trays and bags; cut quantities always stated on the quote.
  • Photo-verified countsEvery line counted and photographed before the box closes.
  • PayPal buyer protectionPay by T/T, PayPal or Payoneer — card payments covered end to end.
How we verify every order →

Specifications

79821-420HLF Technical Specifications
ParameterValue
SeriesBERGSTIK® II
GenderMale Pin
Mounting typeThrough Hole
Connector typeHeader
Fastening typePush-Pull
Voltage rating110V
Current rating5A
Contact materialPhosphor Bronze
Insulation colorBlack
Insulation height0.100\" (2.54mm)
Material flammability ratingUL94 V-0
StyleBoard to Board
PackageBag
ShroudingUnshrouded
TerminationSolder
Contact shapeSquare
Rows2
Pitch0.100\" (2.54mm)
Positions20
Row spacing - mating0.100\" (2.54mm)
Contact finish - postTin
Contact length - post0.200\" (5.08mm)
Overall contact length0.730\" (18.54mm)
Contact finish - matingTin
Contact length - mating0.430\" (10.92mm)
Contact finish thickness - mating100.0µin (2.54µm)

Product details

The Amphenol FCI 79821-420HLF is a 20-position, dual-row unshrouded header from the BERGSTIK® II series, on the standard 0.100" (2.54mm) pitch.

The dual-row arrangement with 0.100" (2.54mm) row spacing means the 20 pins occupy a 10-position-wide footprint per row. The overall contact length of 0.730" (18.54mm) splits into a 0.430" (10.92mm) mating length and a 0.200" (5.08mm) solder tail — the post length is what determines the board thickness and through-hole barrel depth.

5 A per circuit is the rated current.

Frequently asked questions

What is the mating connector for the 79821-420HLF?

This unshrouded header mates with any standard 0.100" (2.54mm) pitch dual-row receptacle, typically a BERGSTIK II socket or a generic IDC socket with matching pitch and row count.
