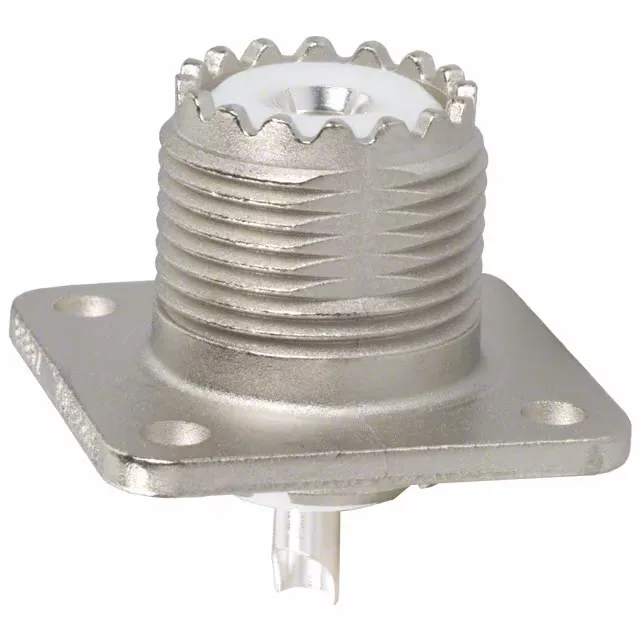

83-798 — Amphenol product photo
Amphenol

Amphenol RF 83-798 UHF Receptacle, Panel Mount, 500 V

MPN83-798
Active

Amphenol RF UHF receptacle, female socket, 83-798, panel mount with flange, threaded coupling, silver-plated brass center contact, nickel zinc die-cast body, 500 V, 300 MHz max, solder cup termination.

$14.7100Ref. price · indicative, final on quote
StockContact for availability
MOQ1 pcs
  • New & original stockTraceable channels only — no mixed lots, no re-taped reels.
  • Factory packaging where availableSealed reels, trays and bags; cut quantities always stated on the quote.
  • Photo-verified countsEvery line counted and photographed before the box closes.
  • PayPal buyer protectionPay by T/T, PayPal or Payoneer — card payments covered end to end.
How we verify every order →

Specifications

83-798 Technical Specifications
ParameterValue
Mounting typePanel Mount
Connector typeReceptacle, Female Socket
Fastening typeThreaded
Voltage rating500 V
Frequency - max300 MHz
Mounting featureFlange
Body materialZinc Die Cast
Housing colorSilver
Dielectric materialPolytetrafluoroethylene (PTFE)
Center contact materialBrass
PackageBulk
ImpedanceNon-Constant
Body finishNickel
Number of ports1
Shield terminationSolder
Contact terminationSolder Cup
Center contact platingSilver

Product details

UHF Receptacle for Panel-Mount RF — 83-798

The connector uses a silver-plated brass center contact terminated via solder cup, with a nickel-plated zinc die-cast body and a PTFE dielectric. Rated for 500 V and usable up to 300 MHz, this is a standard UHF interface — not a constant-impedance 50-ohm line, so it suits lower-frequency RF or DC power-passing applications rather than precision microwave signal paths.

Panel mount with a flange and threaded fastening — the connector bolts through a chassis cutout and the mating plug screws on, holding the pair engaged under cable strain or vibration. Termination is solder cup, so the installer tins the center conductor and wicks it into the cup; no crimp tool needed.
