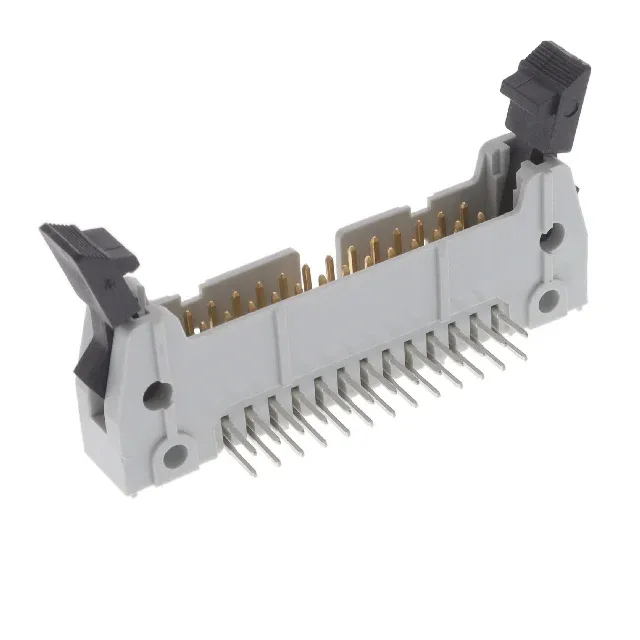

86130262113345E1LF Amphenol ICC (FCI) Quickie™ Header

MPN86130262113345E1LF
Active

Amphenol ICC (FCI) Quickie™, 86130262113345E1LF, Board to Cable/Wire Header, 26 circuits, 0.100" (2.54 mm) pitch, dual-row, through-hole right-angle, shrouded-4 wall, latch lock/eject hooks long, gold or gold-palladium mating finish, UL94 V-0, -55°C~125°C.

$1.1300Ref. price · indicative, final on quote
86130262113345E1LF datasheet
StockContact for availability
Lead timeIn Stock wk
MOQ1 pcs
  • New & original stockTraceable channels only — no mixed lots, no re-taped reels.
  • Factory packaging where availableSealed reels, trays and bags; cut quantities always stated on the quote.
  • Photo-verified countsEvery line counted and photographed before the box closes.
  • PayPal buyer protectionPay by T/T, PayPal or Payoneer — card payments covered end to end.
How we verify every order →

Specifications

86130262113345E1LF Technical Specifications
ParameterValue
SeriesQuickie™
GenderMale Pin
Mounting typeThrough Hole, Right Angle
Connector typeHeader
Fastening typeLatch Lock/Eject Hooks, Long
Voltage rating250V
Operating temperature-55°C~125°C
Contact materialCopper Alloy
Insulation colorGray
Insulation height0.344\" (8.75mm)
Insulation materialPolybutylene Terephthalate (PBT)
Material flammability ratingUL94 V-0
StyleBoard to Cable/Wire
PackageTray
FeaturesKeying Slot
ShroudingShrouded - 4 Wall
TerminationSolder
Contact shapeCircular
Rows2
Pitch0.100\" (2.54mm)
Positions26
Row spacing - mating0.100\" (2.54mm)
Contact finish - postTin
Contact length - post0.165\" (4.19mm)
Contact finish - matingGold or Gold-Palladium
Contact length - mating0.240\" (6.10mm)

Product details

26-Pin Right-Angle Quickie™ Header for Wire-to-Board

The 86130262113345E1LF: The long latch lock/eject hooks hold the mating connector securely under vibration and give a positive release when you need to unmate — no prying required.

Termination is solder (through-hole). The header mates with standard Quickie™ IDC or crimp receptacles. The keying slot prevents misalignment — you won't force a wrong-orientation cable into the header.

The base product number is 86130262. Peer variants in the same series differ only by position count: 86130262114345E1LF (also 26 positions, same pitch and plating), 86130202113345E1LF (20 positions), and 86130342113345E1LF (34 positions).
