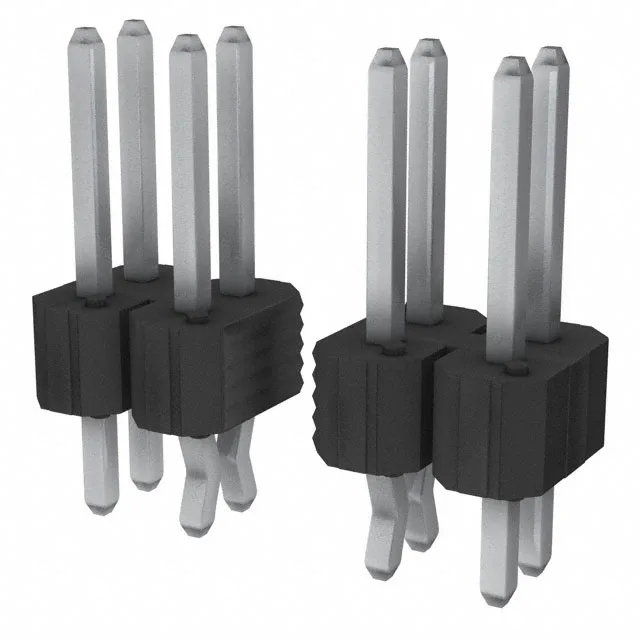

The 86380-410HLF is the 10-position, dual-row member of the BERGSTIK II header family, unshrouded with push-pull fastening, rated for board-to-board stacking. Mating contacts are tin-plated with a 100.0 µin thickness, through-hole solder termination with kinked pins for retention.
86380-410HLF BERGSTIK II Header, 10 Pos, 0.100" Pitch
MPN86380-410HLF
Active
Amphenol ICC (FCI) BERGSTIK® II header, order code 86380-410HLF, 10 positions, dual row, 0.100" (2.54 mm) pitch, tin-plated mating contacts, unshrouded, through-hole, kinked pin solder termination.
$6.8600Ref. price · indicative, final on quote
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Aug 2026
Specifications
| Parameter | Value |
|---|---|
| Series | BERGSTIK® II |
| Type | Male Pin |
| Mounting | Through Hole |
| Connector type | Header |
| Fastening type | Push-Pull |
| Contact material | Phosphor Bronze |
| Insulation color | Black |
| Insulation height | 0.100\" (2.54mm) |
| Insulation material | Polycyclohexylenedimethylene Terephthalate (PCT) |
| Material flammability rating | UL94 V-0 |
| Style | Board to Board |
| Package | Bag |
All specifications
| Parameter | Value |
|---|---|
| Shrouding | Unshrouded |
| Termination | Kinked Pin, Solder |
| Contact shape | Square |
| Rows | 2 |
| Pitch | 0.100\" (2.54mm) |
| Positions | 10 |
| Row spacing - mating | 0.100\" (2.54mm) |
| Contact finish - post | Tin |
| Contact length - post | 0.120\" (3.05mm) |
| Overall contact length | 0.470\" (11.94mm) |
| Contact finish - mating | Tin |
| Contact length - mating | 0.250\" (6.35mm) |
| Contact finish thickness - mating | 100.0µin (2.54µm) |
