Rated 5A per contact with 30.0µin (0.76µm) gold plating on the mating surface, this header is specced for repeated mating cycles and moderate current levels — think power distribution on a backplane or a board-to-wire harness interface, not just a low-level signal line. The gold thickness is enough to resist fretting corrosion in environments with thermal cycling or vibration, provided the mating receptacle uses a compatible gold-on-gold interface. The mating receptacle housing must provide the keying and latch retention; the header itself offers only a push-pull interface. The 0.100" (2.54mm) row spacing mirrors the pin pitch, so the overall footprint is a 2x6 grid that fits a standard 0.100" x 0.100" prototyping area. The phosphor bronze contacts with the stated gold plating are a common combination for a balance of cost and cycle life in commercial and industrial gear.

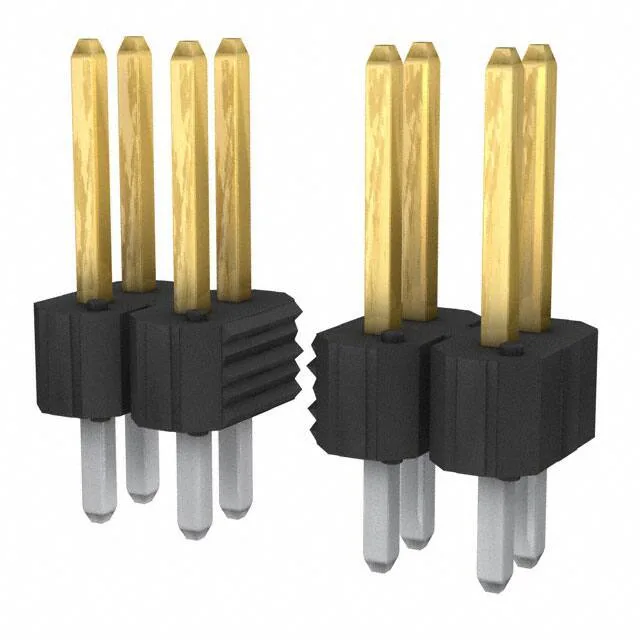

FCI BERGSTIK® II 86503-112HLF, Board to Board, Header, 12 Positions, 2 Rows, 0.100" (2.54mm) Pitch, Through Hole, Solder, Unshrouded, Gold 30.0µin Mating.
$1.8500Ref. price · indicative, final on quote
StockContact for availability
MOQ1 pcs
- New & original stockTraceable channels only — no mixed lots, no re-taped reels.
- Factory packaging where availableSealed reels, trays and bags; cut quantities always stated on the quote.
- Photo-verified countsEvery line counted and photographed before the box closes.
- PayPal buyer protectionPay by T/T, PayPal or Payoneer — card payments covered end to end.
Specifications
| Parameter | Value |
|---|---|
| Series | BERGSTIK® II |
| Gender | Male Pin |
| Mounting type | Through Hole |
| Connector type | Header |
| Fastening type | Push-Pull |
| Voltage rating | 110V |
| Current rating | 5A |
| Contact material | Phosphor Bronze |
| Insulation color | Black |
| Insulation height | 0.100\" (2.54mm) |
| Material flammability rating | UL94 V-0 |
| Style | Board to Board |
| Package | Bag |
| Shrouding | Unshrouded |
| Termination | Solder |
| Contact shape | Square |
| Rows | 2 |
| Pitch | 0.100\" (2.54mm) |
| Positions | 12 |
| Row spacing - mating | 0.100\" (2.54mm) |
| Contact length - post | 0.120\" (3.05mm) |
| Overall contact length | 0.470\" (11.94mm) |
| Contact finish - mating | Gold or Gold, GXT™ |
| Contact length - mating | 0.250\" (6.35mm) |
| Contact finish thickness - mating | 30.0µin (0.76µm) |
Product details
Frequently asked questions
What is the pitch of 86503-112HLF?
The pitch is 0.100" (2.54mm) on both the pin spacing and the row spacing, matching the standard DIP footprint.
Is 86503-112HLF shrouded?
No, the 86503-112HLF is an unshrouded header. The square pins are fully exposed, so the mating receptacle must provide the polarization and latch retention.
