Right-angle board-to-board unshrouded header
The 86641-426H is the 26-circuit member of Amphenol ICC (FCI)'s BergStik II header line, a single-row unshrouded male pin header for board-to-board stacking.

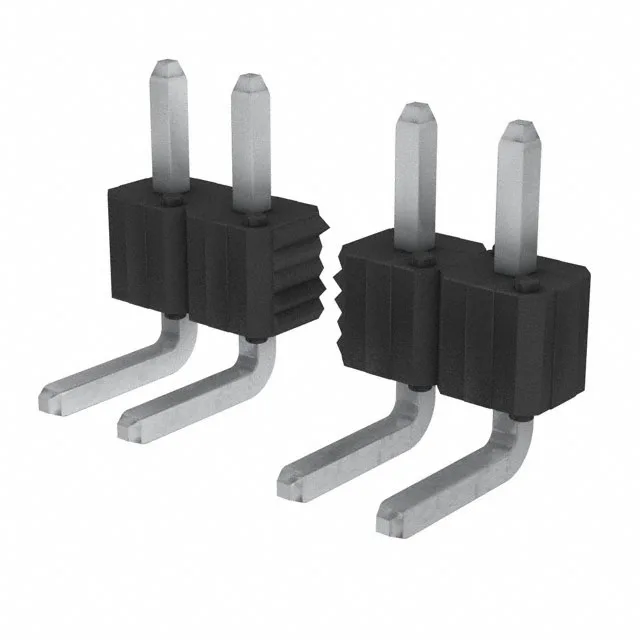

Amphenol ICC (FCI) 86641-426H BergStik II Header, 26-Pos
MPN86641-426H
Active
Amphenol ICC (FCI) BergStik II header, order code 86641-426H, 26 positions, single row, 0.100" (2.54mm) pitch, tin-plated mating contacts, through-hole right-angle, kinked pin solder termination.
$0.9086Ref. price · indicative, final on quote
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Aug 2026
Specifications
| Parameter | Value |
|---|---|
| Series | BERGSTIK® II |
| Type | Male Pin |
| Mounting | Through Hole, Right Angle |
| Connector type | Header |
| Fastening type | Push-Pull |
| Contact material | Phosphor Bronze |
| Insulation color | Black |
| Insulation height | 0.095\" (2.41mm) |
| Insulation material | Polycyclohexylenedimethylene Terephthalate (PCT), Glass Filled |
| Material flammability rating | UL94 V-0 |
| Style | Board to Board |
| Package | Bulk |
All specifications
| Parameter | Value |
|---|---|
| Shrouding | Unshrouded |
| Termination | Kinked Pin, Solder |
| Contact shape | Square |
| Rows | 1 |
| Pitch | 0.100\" (2.54mm) |
| Positions | 26 |
| Contact length - post | 0.120\" (3.05mm) |
| Contact finish - mating | Tin |
| Contact length - mating | 0.120\" (3.05mm) |
| Contact finish thickness - mating | 100.0µin (2.54µm) |
Product details
Frequently asked questions
What is the listed style and series for 86641-426H?
The style is Board to Board and the series is BergStik II.
What compliance documentation does Amphenol ICC (FCI) provide for 86641-426H?
The insulation material is rated UL94 V-0. RoHS and REACH compliance documentation is available from the manufacturer.
