The 86730-101LF: The mated height above the board is 0.138" (3.50 mm), which leaves clearance under a parallel board or above a low-profile component. Open-top construction means the contact beams are exposed from above — useful for probing or visual inspection of the connection after mating.

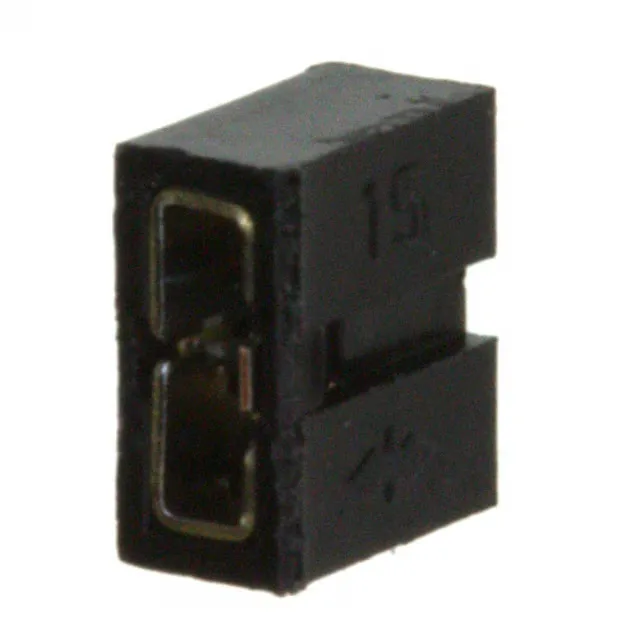

Amphenol ICC (FCI) Minitek® 2.00mm, 2-position open-top shunt, female sockets, 0.079" (2.00mm) pitch, 0.138" (3.50mm) height, 30.0µin gold contact finish, 1 A rating, UL94 V-0 black PBT housing, bulk package.
$0.8900Ref. price · indicative, final on quote
StockContact for availability
Lead timeIn Stock wk
MOQ1 pcs
- New & original stockTraceable channels only — no mixed lots, no re-taped reels.
- Factory packaging where availableSealed reels, trays and bags; cut quantities always stated on the quote.
- Photo-verified countsEvery line counted and photographed before the box closes.
- PayPal buyer protectionPay by T/T, PayPal or Payoneer — card payments covered end to end.
Specifications
| Parameter | Value |
|---|---|
| Type | Open Top |
| Series | Minitek® 2.00mm |
| Current rating | 1A |
| Color | Black |
| Height | 0.138\" (3.50mm) |
| Housing material | Polybutylene Terephthalate (PBT), Glass Filled |
| Material flammability rating | UL94 V-0 |
| Pitch | 0.079\" (2.00mm) |
| Gender | Female Sockets |
| Package | Bulk |
| Contact finish | Gold |
| Contact finish thickness | 30.0µin (0.76µm) |
| Number of positions or pins | 2 (1 x 2) |
Product details
Frequently asked questions
What is the pitch of the 86730-101LF shunt?
This matches the Minitek 2.00 mm header row spacing.
What is the height of the 86730-101LF shunt?
0.138" (3.50 mm) mated height above the board surface.
