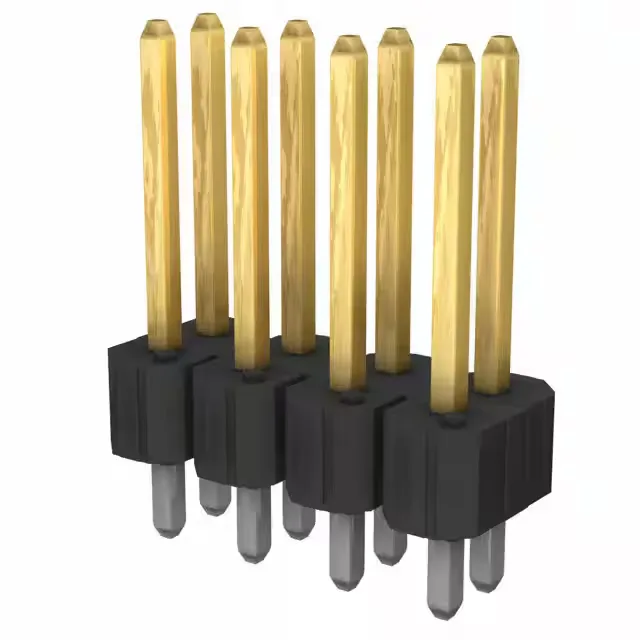

Amphenol ICC (FCI) BERGSTIK II header, order code 86832-108HLF, 8 positions, dual row, 0.100" (2.54 mm) pitch, 5 A, 110 V, gold-plated mating contacts, through-hole, solder termination.
| Parameter | Value |
|---|---|
| Series | BERGSTIK® II |
| Type | Male Pin |
| Mounting | Through Hole |
| Connector type | Header |
| Fastening type | Push-Pull |
| Voltage rating | 110V |
| Current rating | 5A |
| Contact material | Phosphor Bronze |
| Insulation color | Black |
| Insulation height | 0.100\" (2.54mm) |
| Material flammability rating | UL94 V-0 |
| Style | Board to Board |
| Parameter | Value |
|---|---|
| Package | Bag |
| Shrouding | Unshrouded |
| Termination | Solder |
| Contact shape | Square |
| Rows | 2 |
| Pitch | 0.100\" (2.54mm) |
| Positions | 8 |
| Row spacing - mating | 0.100\" (2.54mm) |
| Contact length - post | 0.100\" (2.54mm) |
| Overall contact length | 0.525\" (13.34mm) |
| Contact finish - mating | Gold or Gold, GXT™ |
| Contact length - mating | 0.325\" (8.26mm) |
| Contact finish thickness - mating | 30.0µin (0.76µm) |
The 86832-108HLF: The housing is UL94 V-0 rated black thermoplastic.
The 8-position 86832-108HLF sits between the 6-position 86832-106HLF and the 10-position 86832-110HLF in the same dual-row, 0.100" pitch BERGSTIK II series.
RoHS and REACH compliance documentation is provided by Amphenol ICC (FCI) for the BERGSTIK II series.
