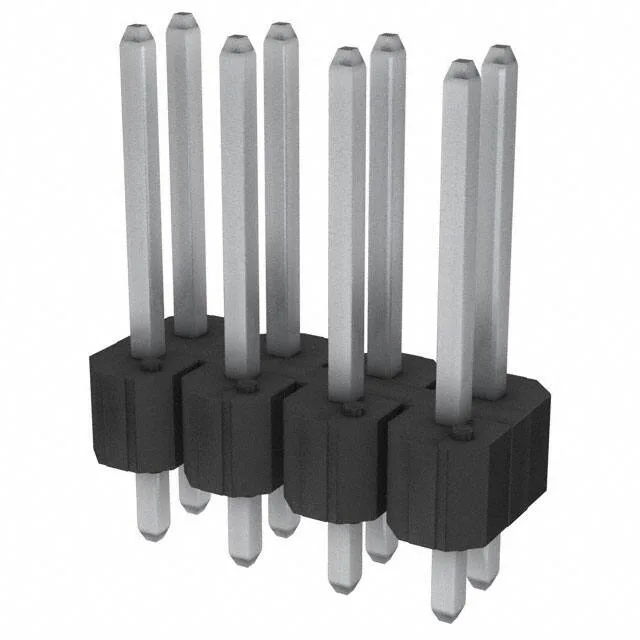

86832-408HLF — Amphenol product photo
Amphenol

Amphenol FCI 86832-408HLF BERGSTIK II Header, 8 pos

MPN86832-408HLF
Active

Amphenol FCI BERGSTIK® II, 0.100" (2.54mm) pitch, 8-position, dual-row, unshrouded male pin header, through-hole solder termination, 5 A per contact at 110 V, tin-plated contacts, UL94 V-0.

$1.5300Ref. price · indicative, final on quote
86832-408HLF datasheet
StockContact for availability
MOQ1 pcs
  • New & original stockTraceable channels only — no mixed lots, no re-taped reels.
  • Factory packaging where availableSealed reels, trays and bags; cut quantities always stated on the quote.
  • Photo-verified countsEvery line counted and photographed before the box closes.
  • PayPal buyer protectionPay by T/T, PayPal or Payoneer — card payments covered end to end.
How we verify every order →

Specifications

86832-408HLF Technical Specifications
ParameterValue
SeriesBERGSTIK® II
GenderMale Pin
Mounting typeThrough Hole
Connector typeHeader
Fastening typePush-Pull
Voltage rating110V
Current rating5A
Contact materialPhosphor Bronze
Insulation colorBlack
Insulation height0.100\" (2.54mm)
Material flammability ratingUL94 V-0
StyleBoard to Board
PackageBag
ShroudingUnshrouded
TerminationSolder
Contact shapeSquare
Rows2
Pitch0.100\" (2.54mm)
Positions8
Row spacing - mating0.100\" (2.54mm)
Contact finish - postTin
Contact length - post0.100\" (2.54mm)
Overall contact length0.525\" (13.34mm)
Contact finish - matingTin
Contact length - mating0.325\" (8.26mm)
Contact finish thickness - mating100.0µin (2.54µm)

Product details

The Amphenol FCI 86832-408HLF is an 8-position, dual-row unshrouded male pin header from the BERGSTIK® II series, on the standard 0.100" (2.54mm) pitch.

The 0.100" (2.54mm) row spacing mirrors the pitch, giving a clean 0.100" x 0.100" grid that matches legacy perfboard and standard DIP footprints — useful for prototyping or replacing an existing header on a mature board layout. All 8 positions are loaded, so there's no unpopulated pin to track. The phosphor bronze contact material gives good spring properties for consistent normal force over those cycles.

Frequently asked questions

Is the 86832-408HLF RoHS compliant?

The 86832-408HLF is listed with RoHS compliance as part of the BERGSTIK® II series — tin plating is RoHS-compatible, and no restricted substances are indicated in the product documentation.
