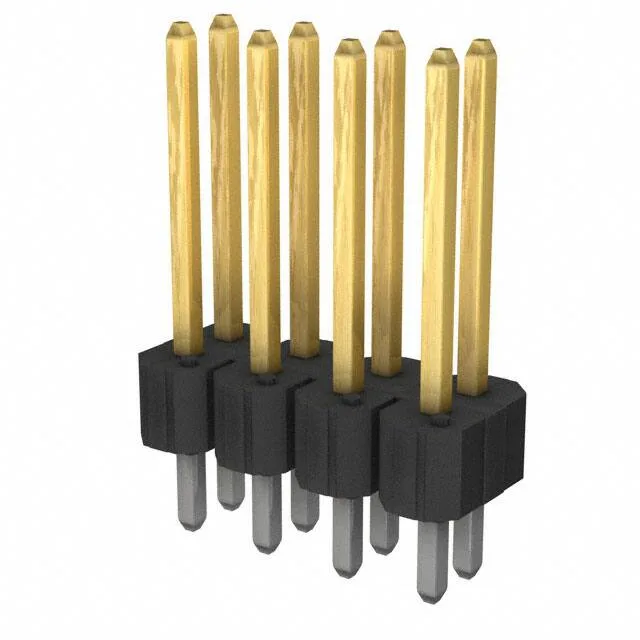

86837-108HLF — Amphenol product photo
Amphenol

Amphenol FCI 86837-108HLF BERGSTIK II Header, 8 Pos, 2.54 mm

MPN86837-108HLF
Active

Amphenol FCI BERGSTIK II dual-row unshrouded header, 86837-108HLF, 8 positions, 0.100" (2.54 mm) pitch, through-hole solder, 5 A per contact, 110 V, gold or GXT contact finish, UL94 V-0.

$0.3951Ref. price · indicative, final on quote
86837-108HLF datasheet
StockContact for availability
MOQ1 pcs
  • New & original stockTraceable channels only — no mixed lots, no re-taped reels.
  • Factory packaging where availableSealed reels, trays and bags; cut quantities always stated on the quote.
  • Photo-verified countsEvery line counted and photographed before the box closes.
  • PayPal buyer protectionPay by T/T, PayPal or Payoneer — card payments covered end to end.
How we verify every order →

Specifications

86837-108HLF Technical Specifications
ParameterValue
SeriesBERGSTIK® II
GenderMale Pin
Mounting typeThrough Hole
Connector typeHeader
Fastening typePush-Pull
Voltage rating110V
Current rating5A
Contact materialPhosphor Bronze
Insulation colorBlack
Insulation height0.100\" (2.54mm)
Material flammability ratingUL94 V-0
StyleBoard to Board
PackageBag
ShroudingUnshrouded
TerminationSolder
Contact shapeSquare
Rows2
Pitch0.100\" (2.54mm)
Positions8
Row spacing - mating0.100\" (2.54mm)
Contact length - post0.120\" (3.05mm)
Overall contact length0.600\" (15.24mm)
Contact finish - matingGold or Gold, GXT™
Contact length - mating0.380\" (9.65mm)
Contact finish thickness - mating30.0µin (0.76µm)

Product details

The Amphenol FCI 86837-108HLF is an 8-position, dual-row unshrouded header from the BERGSTIK II series, on the industry-standard 0.100" (2.54 mm) pitch.

Within the BERGSTIK II series, the 86837-108HLF sits as an 8-position dual-row variant against the 10-position 86837-110HLF at the same 0.100" pitch and 5 A rating. The choice between them is driven purely by the circuit count on your BOM — the footprint, plating, and electrical ratings are identical, so no re-qualification is needed if you swap between the two position counts.

Frequently asked questions

Can 86837-108HLF be used for wire-to-board connections?

Yes, this unshrouded header mates with the matching BERGSTIK II receptacle housing for wire-to-board connections. The 0.100" pitch and 5 A rating are compatible with standard crimp terminals in that housing family.
