It uses a standard 0.100" (2.54 mm) pitch on both the mating interface and row spacing, which matches the vast majority of legacy and current PCB layouts. Rated 5 A per circuit at 110 V, with a 30.0 µin gold or GXT™ mating finish, this is a signal-density part — the gold thickness supports repeated mating cycles in production or field service without contact fretting.
The 0.100" pitch and 0.100" row spacing define the board footprint — a standard 0.025" square pin pattern that routes easily on two-layer boards. The 30.0 µin gold on the mating surface is a mid-grade thickness — high enough for 200+ mating cycles in a clean environment, but not rated for continuous high-vibration or corrosive atmospheres without a secondary locking mechanism.

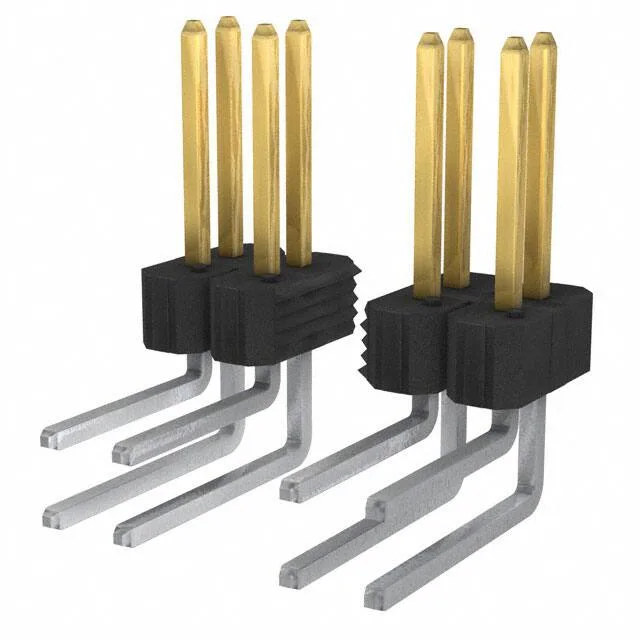

Through-hole right-angle mounting with solder termination. The post length is 0.230" (5.84 mm) — enough for standard 0.062" PCBs with through-hole solder fillets. The insulation height of 0.190" (4.83 mm) sets the clearance between the board surface and the bottom of the mated connector body.
