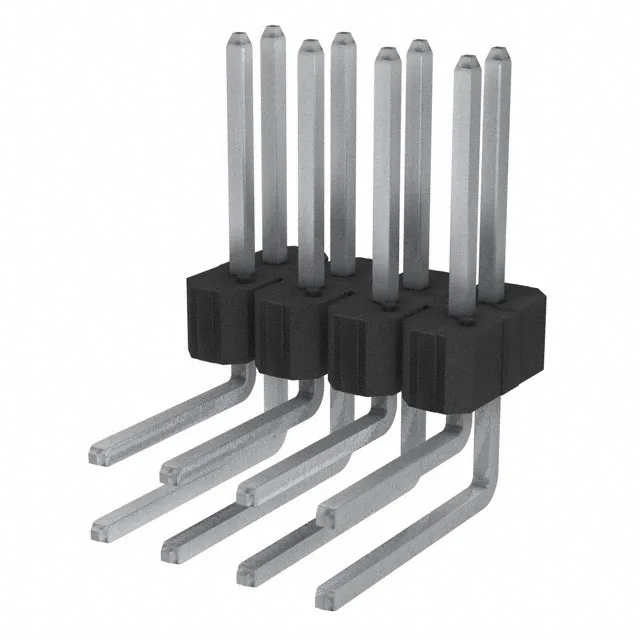

86840-408HLF — Amphenol product photo

Amphenol FCI 86840-408HLF BERGSTIK II Header, 8-Pos, 2.54mm

MPN86840-408HLF
Active

Amphenol FCI BERGSTIK® II, 86840-408HLF, 8-position dual-row unshrouded header, 0.100" (2.54mm) pitch, right-angle through-hole, tin-plated phosphor bronze contacts, 5A, 110V, UL94 V-0.

$1.5300Ref. price · indicative, final on quote
StockContact for availability
MOQ1 pcs
  • New & original stockTraceable channels only — no mixed lots, no re-taped reels.
  • Factory packaging where availableSealed reels, trays and bags; cut quantities always stated on the quote.
  • Photo-verified countsEvery line counted and photographed before the box closes.
  • PayPal buyer protectionPay by T/T, PayPal or Payoneer — card payments covered end to end.

Specifications

86840-408HLF Technical Specifications
ParameterValue
SeriesBERGSTIK® II
GenderMale Pin
Mounting typeThrough Hole, Right Angle
Connector typeHeader
Fastening typePush-Pull
Voltage rating110V
Current rating5A
Contact materialPhosphor Bronze
Insulation colorBlack
Insulation height0.190\" (4.83mm)
Material flammability ratingUL94 V-0
StyleBoard to Board
PackageBag
ShroudingUnshrouded
TerminationSolder
Contact shapeSquare
Rows2
Pitch0.100\" (2.54mm)
Positions8
Row spacing - mating0.100\" (2.54mm)
Contact finish - postTin
Contact length - post0.230\" (5.84mm)
Contact finish - matingTin
Contact length - mating0.318\" (8.08mm)
Contact finish thickness - mating100.0µin (2.54µm)

Product details

Tin-plated phosphor bronze contacts carry a 5A per-circuit rating at 110V, and the 100.0µin (2.54µm) tin finish on the mating surface handles moderate insertion cycles in a clean indoor environment.

Derate above 25°C per the manufacturer's curve. The 110V rating is the working voltage; it gives enough creepage margin on the 2.54mm pitch for low-voltage power distribution and signal-level circuits, but not for mains-voltage isolation. For a board-edge header that gets mated once or twice in its service life, tin is perfectly adequate; for a field-serviceable connection that cycles regularly, you would want a gold-flashed variant from the same series.

Frequently asked questions

What connector series does the 86840-408HLF belong to?

It is a member of the Amphenol FCI BERGSTIK II series, a dual-row 0.100-inch pitch board-to-board header family used in industrial and instrumentation applications.

What is the 86840-408HLF's connector style?

Board-to-Board. It is an unshrouded, dual-row male pin header designed for right-angle through-hole mounting.
