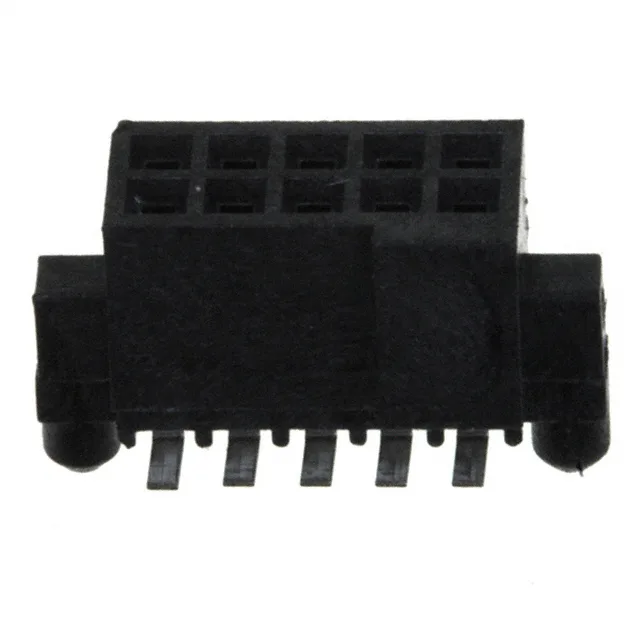

87024-605LF — Amphenol product photo
Amphenol

87024-605LF Amphenol ICC Rib-Cage Receptacle, 10-Pos 1.27mm

MPN87024-605LF
Active

Amphenol ICC (FCI) Rib-Cage™ receptacle, order code 87024-605LF, 10 positions, dual row, 0.050" (1.27mm) pitch, female socket, square contact, surface-mount, solder termination, gold or gold GXT™ mating contact finish.

$2.2500Ref. price · indicative, final on quote
87024-605LF datasheet
StockIn Stock (28)
Lead timeIn Stock wk
MOQ1 pcs
  • New & original stockTraceable channels only — no mixed lots, no re-taped reels.
  • Factory packaging where availableSealed reels, trays and bags; cut quantities always stated on the quote.
  • Photo-verified countsEvery line counted and photographed before the box closes.
  • PayPal buyer protectionPay by T/T, PayPal or Payoneer — card payments covered end to end.
How we verify every order →

Specifications

87024-605LF Technical Specifications
ParameterValue
SeriesRib-Cage™
GenderFemale Socket
Mounting typeSurface Mount
Connector typeReceptacle
Fastening typePush-Pull
Contact materialBeryllium Copper
Insulation colorNatural
Insulation height0.187\" (4.75mm)
Insulation materialThermoplastic, Glass Filled
Material flammability ratingUL94 V-0
StyleBoard to Board
PackageTube
FeaturesBoard Guide
TerminationSolder
ApplicationsGeneral Purpose, Industrial, Telecommunications
Contact shapeSquare
Rows2
Pitch0.050\" (1.27mm)
Positions10
Row spacing - mating0.050\" (1.27mm)
Contact finish - postTin
Contact finish - matingGold or Gold, GXT™
Contact finish thickness - mating30.0µin (0.76µm)

Product details

Board-to-board receptacle, 10 positions, 1.27 mm pitch

The 87024-605LF is the 10-position dual-row member of Amphenol ICC (FCI)'s Rib-Cage™ board-to-board receptacle line. It mounts surface-mount with solder termination and mates with a matching 1.27 mm pitch header. The housing is thermoplastic, glass filled, rated UL94 V-0.

Series fit and position count

The 10-position 87024-605LF is one of several dual-row options; the pitch and footprint are common across the series, so the selection axis is position count.
