87024-650LF Amphenol ICC (FCI) Rib-Cage 100-Position 0.050"

MPN87024-650LF
Active

Amphenol ICC (FCI) Rib-Cage™, 87024-650LF, 100-position, 0.050" (1.27mm) pitch, dual-row, surface-mount female socket receptacle, gold-plated beryllium copper contacts, UL94 V-0 natural thermoplastic housing, tube packaging.

$11.2000Ref. price · indicative, final on quote
87024-650LF datasheet
StockContact for availability
Lead timeIn Stock wk
MOQ1 pcs
  • New & original stockTraceable channels only — no mixed lots, no re-taped reels.
  • Factory packaging where availableSealed reels, trays and bags; cut quantities always stated on the quote.
  • Photo-verified countsEvery line counted and photographed before the box closes.
  • PayPal buyer protectionPay by T/T, PayPal or Payoneer — card payments covered end to end.
How we verify every order →

Specifications

87024-650LF Technical Specifications
ParameterValue
SeriesRib-Cage™
GenderFemale Socket
Mounting typeSurface Mount
Connector typeReceptacle
Fastening typePush-Pull
Contact materialBeryllium Copper
Insulation colorNatural

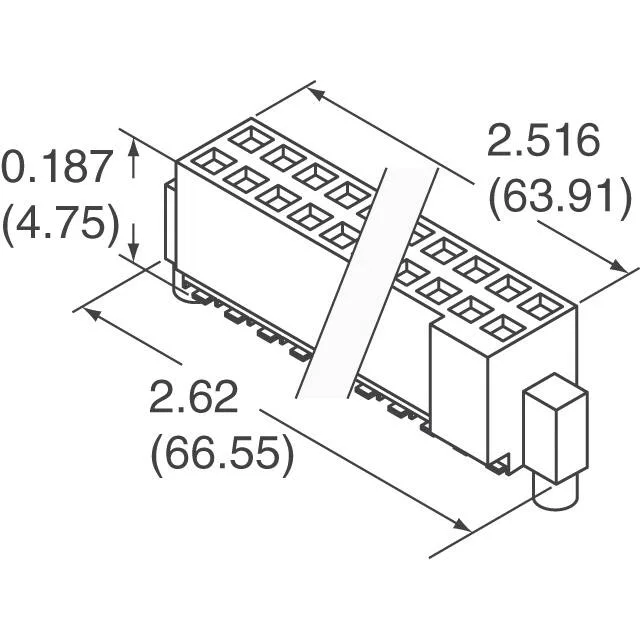

Insulation height0.187\" (4.75mm)
Insulation materialThermoplastic, Glass Filled
Material flammability ratingUL94 V-0
StyleBoard to Board
PackageTube
FeaturesBoard Guide
TerminationSolder
ApplicationsGeneral Purpose, Industrial, Telecommunications
Contact shapeSquare
Rows2
Pitch0.050\" (1.27mm)
Positions100
Row spacing - mating0.050\" (1.27mm)
Contact finish - postTin
Contact finish - matingGold or Gold, GXT™
Contact finish thickness - mating30.0µin (0.76µm)

Product details

100-Position Density in a 0.050" Pitch Footprint

The 87024-650LF is the highest-position-count variant in the Rib-Cage™ series, packing 100 circuits into a dual-row, 0.050" (1.27mm) pitch layout. BeCu delivers consistent contact force over thousands of cycles, and the gold thickness supports repeated mating in environments where tin would wear or corrode.

SMT Termination and Board Guide for Automated Assembly

The integrated board guide helps align the part during pick-and-place, reducing tombstoning and skew on a fine-pitch 0.050" grid.
