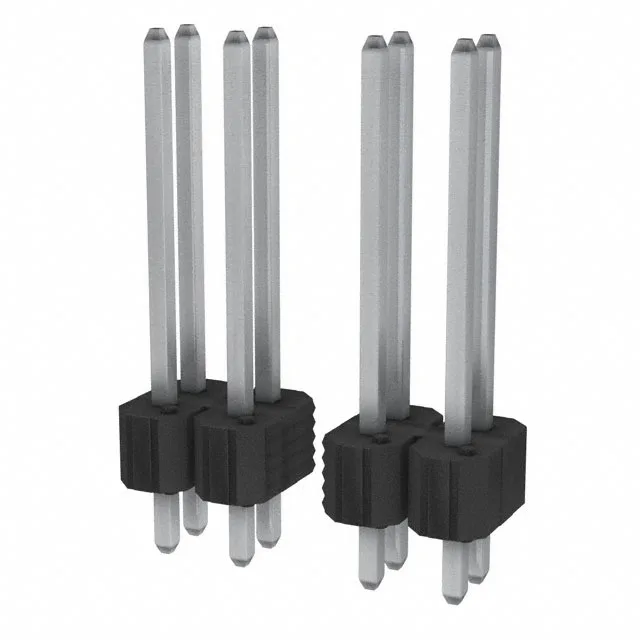

Amphenol ICC (FCI) BERGSTIK II header, order code 87382-410HLF, 10 positions, dual row, 0.100" (2.54 mm) pitch, tin-plated mating contacts, through-hole, solder termination, unshrouded, push-pull fastening.
87382-410HLF Amphenol ICC (FCI) BERGSTIK II Header, 10 Pos
MPN87382-410HLF
Obsolete
Amphenol ICC (FCI) BERGSTIK II header, order code 87382-410HLF, 10 positions, dual row, 0.100" (2.54 mm) pitch, tin-plated mating contacts, through-hole, solder termination, unshrouded, push-pull fastening.
$2.4800Ref. price · indicative, final on quote
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent supplier — new & surplus connector stock· Listing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Series | BERGSTIK® II |
| Type | Male Pin |
| Mounting | Through Hole |
| Connector type | Header |
| Fastening type | Push-Pull |
| Contact material | Phosphor Bronze |
| Insulation color | Black |
| Insulation height | 0.100\" (2.54mm) |
| Material flammability rating | UL94 V-0 |
| Style | Board to Board |
| Package | Bulk |
| Shrouding | Unshrouded |
All specifications
| Parameter | Value |
|---|---|
| Termination | Solder |
| Contact shape | Square |
| Rows | 2 |
| Pitch | 0.100\" (2.54mm) |
| Positions | 10 |
| Row spacing - mating | 0.100\" (2.54mm) |
| Contact finish - post | Tin |
| Contact length - post | 0.100\" (2.54mm) |
| Overall contact length | 0.675\" (17.15mm) |
| Contact finish - mating | Tin |
| Contact length - mating | 0.475\" (12.07mm) |
| Contact finish thickness - mating | 100.0µin (2.54µm) |
