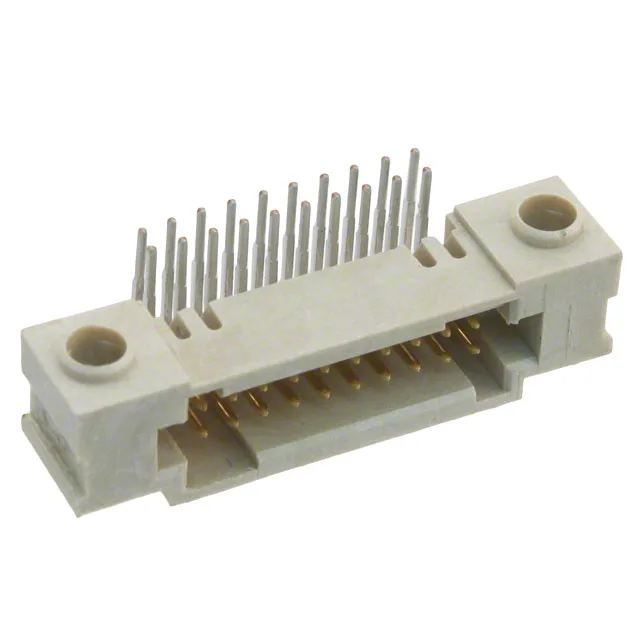

Amphenol ICC (FCI) Rib-Cage™ header, order code 87402-110LF, 20 positions, dual row, 0.050" (1.27mm) pitch, 1A DC, gold or gold GXT™ mating contacts, through-hole right-angle, solder termination.
Amphenol ICC (FCI) Rib-Cage™ header, order code 87402-110LF, 20 positions, dual row, 0.050" (1.27mm) pitch, 1A DC, gold or gold GXT™ mating contacts, through-hole right-angle, solder termination.
$7.5098Ref. price · indicative, final on quote
StockContact for availability
Lead timeIn Stock wk
MOQ1 pcs
- New & original stockTraceable channels only — no mixed lots, no re-taped reels.
- Factory packaging where availableSealed reels, trays and bags; cut quantities always stated on the quote.
- Photo-verified countsEvery line counted and photographed before the box closes.
- PayPal buyer protectionPay by T/T, PayPal or Payoneer — card payments covered end to end.
Specifications
| Parameter | Value |
|---|---|
| Series | Rib-Cage™ |
| Gender | Male Pin |
| Mounting type | Through Hole, Right Angle |
| Connector type | Header |
| Fastening type | Push-Pull |
| Current rating | 1A (DC) |
| Operating temperature | -55°C~130°C |
| Insulation color | Natural |
| Insulation height | 0.240\" (6.10mm) |
| Insulation material | Thermoplastic, Glass Filled |
| Material flammability rating | UL94 V-0 |
| Style | Board to Board |
| Package | Tube |
| Features | Mounting Flange |
| Shrouding | Shrouded - 4 Wall |
| Termination | Solder |
| Contact shape | Square |
| Rows | 2 |
| Pitch | 0.050\" (1.27mm) |
| Positions | 20 |
| Row spacing - mating | 0.050\" (1.27mm) |
| Contact finish - post | Tin |
| Contact length - post | 0.075\" (1.91mm) |
| Contact finish - mating | Gold or Gold, GXT™ |
| Contact length - mating | 0.130\" (3.30mm) |
| Contact finish thickness - post | 200.0µin (5.08µm) |
| Contact finish thickness - mating | 30.0µin (0.76µm) |
Product details
Frequently asked questions
What compliance documentation is available for the 87402-110LF?
The 87402-110LF uses a UL94 V-0 rated glass-filled thermoplastic housing. RoHS and REACH compliance documentation is available from Amphenol ICC (FCI) upon request.
