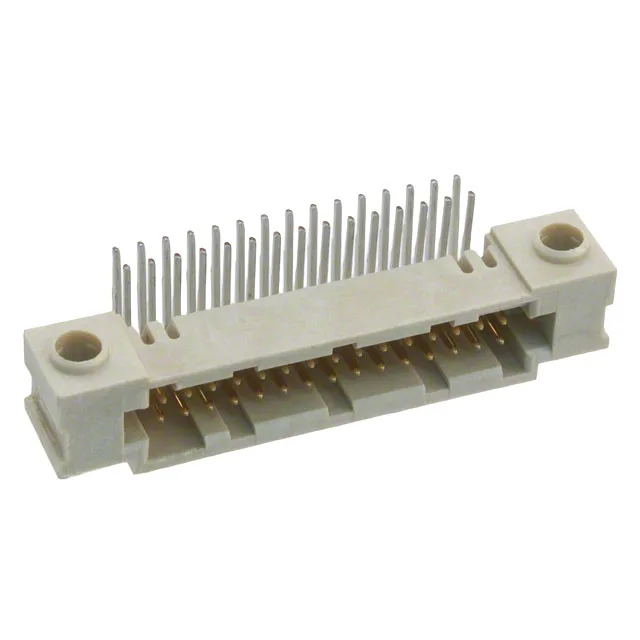

Amphenol ICC (FCI) Rib-Cage™ header, order code 87402-115LF, 30 positions, dual row, 1.27 mm pitch, 1 A, gold or gold GXT™ mating contacts, through-hole right-angle, solder termination.
Amphenol ICC 87402-115LF Rib-Cage Header, 30-Pos 1.27mm
MPN87402-115LF
Active
Amphenol ICC (FCI) Rib-Cage™ header, order code 87402-115LF, 30 positions, dual row, 1.27 mm pitch, 1 A, gold or gold GXT™ mating contacts, through-hole right-angle, solder termination.
$9.6772Ref. price · indicative, final on quote
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent supplier — new & surplus connector stock· Listing updated Aug 2026
Specifications
| Parameter | Value |
|---|---|
| Series | Rib-Cage™ |
| Type | Male Pin |
| Mounting | Through Hole, Right Angle |
| Connector type | Header |
| Fastening type | Push-Pull |
| Current rating | 1A (DC) |
| Operating temperature | -55°C~130°C |
| Insulation color | Natural |
| Insulation height | 0.240\" (6.10mm) |
| Insulation material | Thermoplastic, Glass Filled |
| Material flammability rating | UL94 V-0 |
| Style | Board to Board |
All specifications
| Parameter | Value |
|---|---|
| Package | Tube |
| Features | Mounting Flange |
| Shrouding | Shrouded - 4 Wall |
| Termination | Solder |
| Contact shape | Square |
| Rows | 2 |
| Pitch | 0.050\" (1.27mm) |
| Positions | 30 |
| Row spacing - mating | 0.050\" (1.27mm) |
| Contact finish - post | Tin |
| Contact length - post | 0.075\" (1.91mm) |
| Contact finish - mating | Gold or Gold, GXT™ |
| Contact length - mating | 0.130\" (3.30mm) |
| Contact finish thickness - post | 200.0µin (5.08µm) |
| Contact finish thickness - mating | 30.0µin (0.76µm) |
