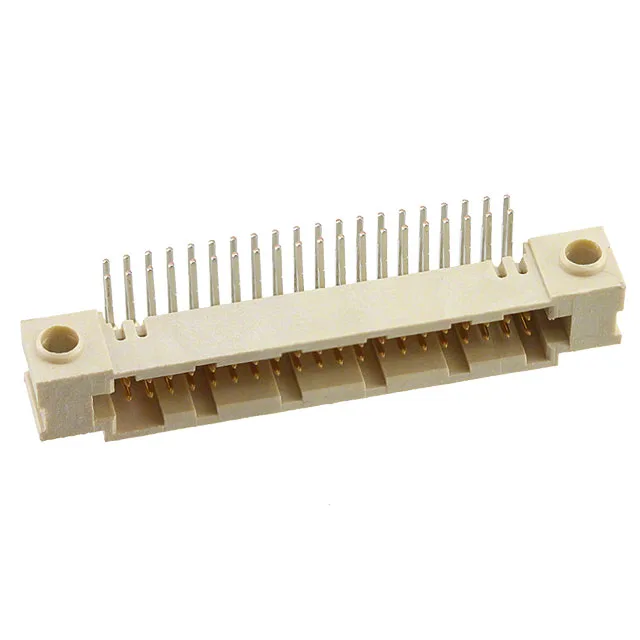

87402-120LF Amphenol FCI Rib-Cage™ 40-Position

MPN87402-120LF
Active

Amphenol FCI Rib-Cage™ 87402-120LF, 40-position, dual-row 1.27mm pitch board-to-board header, gold/GXT mating contact (30µin), tin post (200µin), right-angle through-hole, push-pull, 4-wall shroud, mounting flange, rated 1A DC per circuit, -55 to 130°C, UL94 V-0, tube.

$12.1200Ref. price · indicative, final on quote
87402-120LF datasheet
StockContact for availability
Lead timeIn Stock wk
MOQ1 pcs
  • New & original stockTraceable channels only — no mixed lots, no re-taped reels.
  • Factory packaging where availableSealed reels, trays and bags; cut quantities always stated on the quote.
  • Photo-verified countsEvery line counted and photographed before the box closes.
  • PayPal buyer protectionPay by T/T, PayPal or Payoneer — card payments covered end to end.
How we verify every order →

Specifications

87402-120LF Technical Specifications
ParameterValue
SeriesRib-Cage™
GenderMale Pin
Mounting typeThrough Hole, Right Angle
Connector typeHeader
Fastening typePush-Pull
Current rating1A (DC)
Operating temperature-55°C ~ 130°C
Insulation colorNatural
Insulation height0.240\" (6.10mm)
Insulation materialThermoplastic, Glass Filled
Material flammability ratingUL94 V-0
StyleBoard to Board
FeaturesMounting Flange
PackageTube
ShroudingShrouded - 4 Wall
TerminationSolder
Contact shapeSquare
Rows2
Pitch0.050\" (1.27mm)
Positions40
Row spacing - mating0.050\" (1.27mm)
Contact finish - postTin
Contact length - post0.075\" (1.91mm)
Contact finish - matingGold or Gold, GXT™
Contact length - mating0.130\" (3.30mm)
Contact finish thickness - post200.0µin (5.08µm)
Contact finish thickness - mating30.0µin (0.76µm)

Product details

40-position, 1.27mm pitch board-to-board header for parallel stacking

The right-angle through-hole orientation and 4-wall shroud with mounting flange make it a solid choice for parallel PCB stacking where mechanical stability and a defined mating depth are needed.

Pitch, position count, and mechanical fit for board layout

The mounting flange adds a screw-down option for extra retention in vibration-prone environments. Mating pin length is 0.130" (3.30mm) and the post length is 0.075" (1.91mm), which together define the stack height between boards.

Frequently asked questions

What is the mating connector for 87402-120LF?

This header mates with a 40-position, dual-row, 1.27mm pitch board-to-board receptacle from the same Rib-Cage™ series. Confirm the receptacle part number against your assembly drawing — the 4-wall shroud requires a matching shroud or receptacle profile.
