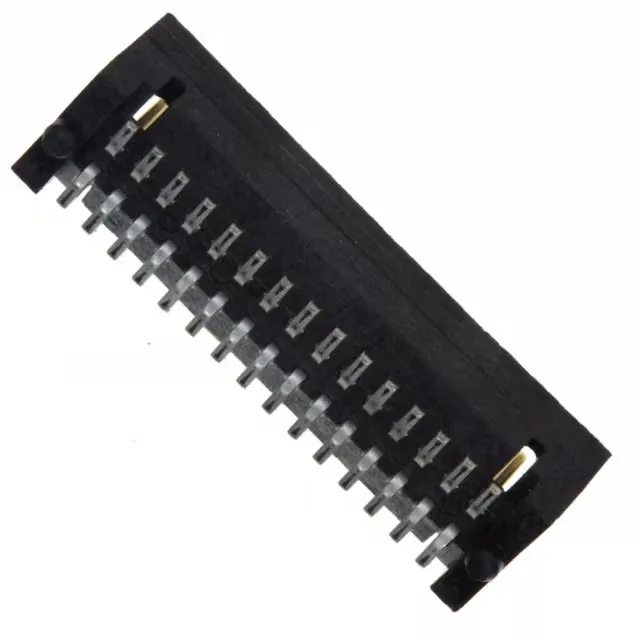

87409-115LF — Amphenol product photo
Amphenol

87409-115LF Amphenol ICC FCI Rib-Cage III Header 30 Pos

MPN87409-115LF
Active

Amphenol ICC (FCI) Rib-Cage™ III board-to-board header, 30 positions, 1.27 mm pitch, dual-row, surface-mount, 1 A per contact, 30 µinch gold mating finish, shrouded 4-wall, UL94 V-0, active production.

$3.2000Ref. price · indicative, final on quote
87409-115LF datasheet
StockContact for availability
Lead timeIn Stock wk
MOQ1 pcs
  • New & original stockTraceable channels only — no mixed lots, no re-taped reels.
  • Factory packaging where availableSealed reels, trays and bags; cut quantities always stated on the quote.
  • Photo-verified countsEvery line counted and photographed before the box closes.
  • PayPal buyer protectionPay by T/T, PayPal or Payoneer — card payments covered end to end.
How we verify every order →

Specifications

87409-115LF Technical Specifications
ParameterValue
SeriesRib-Cage™ III
GenderMale Pin
Mounting typeSurface Mount
Connector typeHeader
Fastening typePush-Pull
Current rating1A (DC)
Operating temperature-55°C~130°C
Insulation colorNatural
Insulation height0.226\" (5.74mm)
Insulation materialThermoplastic, Glass Filled
Mated stacking heights6.42mm
Material flammability ratingUL94 V-0
StyleBoard to Board
PackageTube
FeaturesBoard Guide
ShroudingShrouded - 4 Wall
TerminationSolder
ApplicationsGeneral Purpose, Military
Contact shapeSquare
Rows2
Pitch0.050\" (1.27mm)
Positions30
Row spacing - mating0.050\" (1.27mm)
Contact finish - postTin
Contact finish - matingGold or Gold, GXT™
Contact length - mating0.130\" (3.30mm)
Contact finish thickness - post100.0µin (2.54µm)
Contact finish thickness - mating30.0µin (0.76µm)

Product details

Board-to-Board Stacking with the Rib-Cage III Header

The 87409-115LF: A board guide feature further eases assembly in multi-connector layouts.

Mates with a Rib-Cage™ III receptacle (same series, 30-position, 1.27 mm pitch) — confirm the receptacle part number against the BOM before committing. Surface-mount solder termination: the board footprint must match the 1.27 mm pitch dual-row layout. The 100 µinch tin finish on the posts is solderable with standard SAC305 or SnPb reflow profiles — no special plating required for the solder joint.

Frequently asked questions

What is the mating connector for 87409-115LF?

It mates with a Rib-Cage™ III receptacle of the same pitch (1.27 mm) and position count (30). The shrouded 4-wall header and push-pull fastening require no additional locking hardware — the board guide handles alignment during mating.

Where can I buy 87409-115LF?

Availability and current pricing confirmed at quote time.
