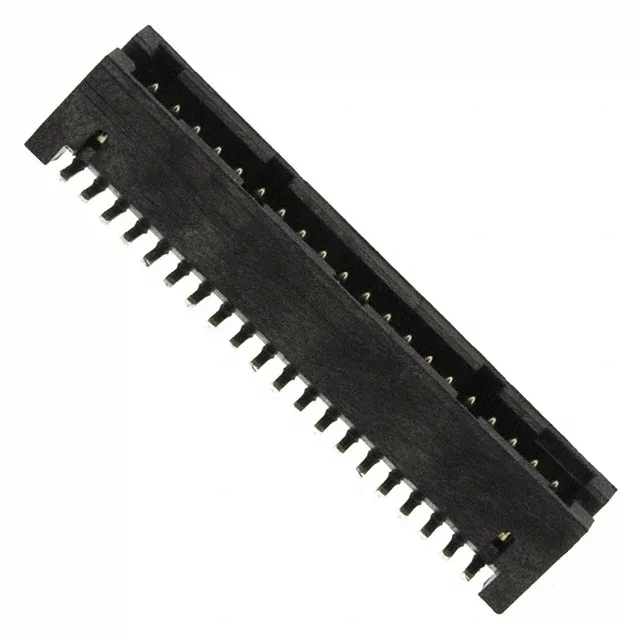

87409-120LF — Amphenol product photo
Amphenol

87409-120LF Amphenol ICC (FCI) Rib-Cage™ III Header, 40 Pos

MPN87409-120LF
Active

Amphenol ICC (FCI) Rib-Cage™ III, Board to Board Header, 40 positions, 2 rows, 1.27mm pitch, Surface Mount, 1A, -55°C~130°C, 30µin gold mating, UL94 V-0

$4.2400Ref. price · indicative, final on quote
87409-120LF datasheet
StockContact for availability
Lead timeIn Stock wk
MOQ1 pcs
  • New & original stockTraceable channels only — no mixed lots, no re-taped reels.
  • Factory packaging where availableSealed reels, trays and bags; cut quantities always stated on the quote.
  • Photo-verified countsEvery line counted and photographed before the box closes.
  • PayPal buyer protectionPay by T/T, PayPal or Payoneer — card payments covered end to end.
How we verify every order →

Specifications

87409-120LF Technical Specifications
ParameterValue
SeriesRib-Cage™ III
GenderMale Pin
Mounting typeSurface Mount
Connector typeHeader
Fastening typePush-Pull
Current rating1A (DC)
Operating temperature-55°C~130°C
Insulation colorNatural
Insulation height0.226\" (5.74mm)
Insulation materialThermoplastic, Glass Filled
Mated stacking heights6.42mm
Material flammability ratingUL94 V-0
StyleBoard to Board
PackageTube
FeaturesBoard Guide
ShroudingShrouded - 4 Wall
TerminationSolder
ApplicationsGeneral Purpose, Military
Contact shapeSquare
Rows2
Pitch0.050\" (1.27mm)
Positions40
Row spacing - mating0.050\" (1.27mm)
Contact finish - postTin
Contact finish - matingGold or Gold, GXT™
Contact length - mating0.130\" (3.30mm)
Contact finish thickness - post100.0µin (2.54µm)
Contact finish thickness - mating30.0µin (0.76µm)

Product details

Board-to-Board Signal Header for Dense Interconnects

The 87409-120LF: The wide operating range from -55°C to 130°C suits equipment that sees thermal cycling in military or industrial environments.

Mating Connector and Cable Compatibility

The 87409-120LF is not designed for standard ribbon cable or IDC termination — it is a surface-mount header intended for PCB-to-PCB connection. For cable-to-board applications, a different connector family (such as a wire-to-board header with crimp terminals) would be needed.

It is supplied in tube packaging for automated pick-and-place. No official successor or pin-compatible alternative is recorded from the original manufacturer.

Frequently asked questions

What is the mating connector for 87409-120LF?

The 87409-120LF mates with a Rib-Cage™ III receptacle of the same pitch (1.27mm) and position count (40 positions) to achieve a board-to-board stack height of 6.42mm. The mating half is a surface-mount receptacle from the same series — confirm the exact order code from the Rib-Cage™ III product family.

Is 87409-120LF compatible with standard ribbon cable?

No. This is a board-to-board header with surface-mount termination, designed to solder directly to a PCB. It does not accept ribbon cable or IDC connectors. For cable-to-board connections, look at wire-to-board header families with crimp terminals.
