Amphenol ICC (FCI) Rib-Cage™ III, Board to Board Header, 50 Positions, 1.27 mm Pitch, Dual Row, Surface Mount, Gold or GXT™ Mating Finish, 1 A, UL94 V-0
| Parameter | Value |
|---|---|
| Series | Rib-Cage™ III |
| Type | Male Pin |
| Mounting | Surface Mount |
| Connector type | Header |
| Fastening type | Push-Pull |
| Current rating | 1A (DC) |
| Operating temperature | -55°C~130°C |
| Insulation color | Natural |

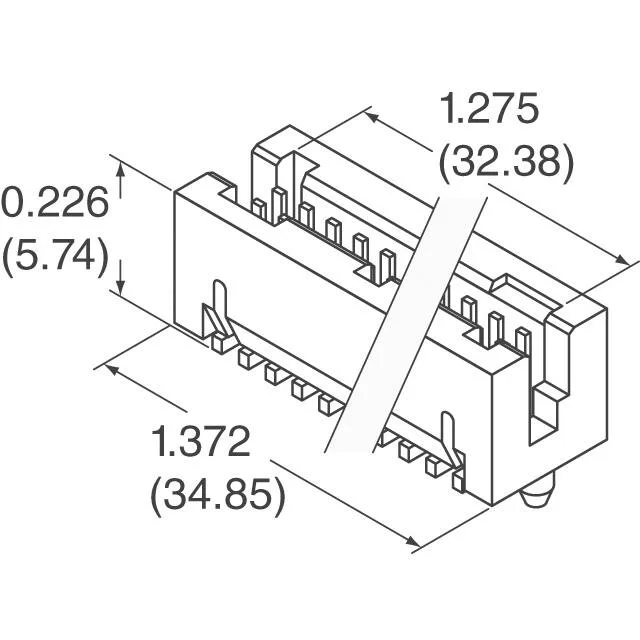

| Insulation height | 0.226\" (5.74mm) |
| Insulation material | Thermoplastic, Glass Filled |
| Mated stacking heights | 6.42mm |
| Material flammability rating | UL94 V-0 |
| Parameter | Value |
|---|---|
| Style | Board to Board |
| Package | Tube |
| Features | Board Guide |
| Shrouding | Shrouded - 4 Wall |
| Termination | Solder |
| Applications | General Purpose, Military |
| Contact shape | Square |
| Rows | 2 |
| Pitch | 0.050\" (1.27mm) |
| Positions | 50 |
| Row spacing - mating | 0.050\" (1.27mm) |
| Contact finish - post | Tin |
| Contact finish - mating | Gold or Gold, GXT™ |
| Contact length - mating | 0.130\" (3.30mm) |
| Contact finish thickness - post | 100.0µin (2.54µm) |
| Contact finish thickness - mating | 30.0µin (0.76µm) |
Surface-mount termination with a 4-wall shrouded housing and a board guide feature. The push-pull fastening type and square male pins simplify alignment during board stacking.
Active lifecycle status, RoHS compliant.
