Amphenol 87545-4111LF
MPN87545-4111LF
Active

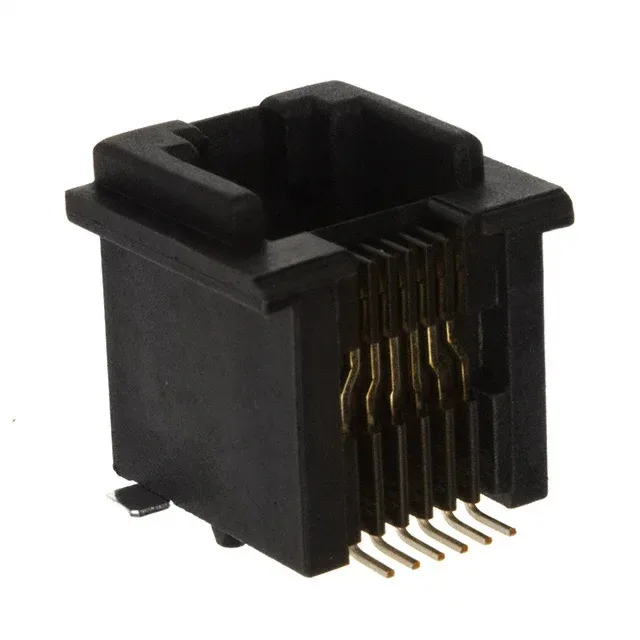

CONN MOD JACK 6P6C VERT UNSHLD
$2.66Ref. price · indicative, final on quote
RoHSRoHS Compliant
Series87545
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Series | 87545 |
| Mounting | Surface Mount |
| Connector type | Jack |
| Operating temperature | -40°C ~ 70°C |
| LED color | Does Not Contain LED |
| Contact material | Phosphor Bronze |
| Housing material | Thermoplastic |
| Package | Tape & Reel (TR); Cut Tape (CT) |
| Ratings | Cat3 |
| Features | Board Guide, Panel Stops, Solder Retention |
| Shielding | Unshielded |
| Orientation | Vertical |
All specifications
| Parameter | Value |
|---|---|
| Termination | Solder |
| Tab direction | User Selectable |
| Contact finish | Gold |
| Rows | 1 |
| Number of ports | 1 |
| Contact finish thickness | 30.0µin (0.76µm) |
| Number of positions (Contacts) | 6p6c (RJ11, RJ12, RJ14, RJ25) |
