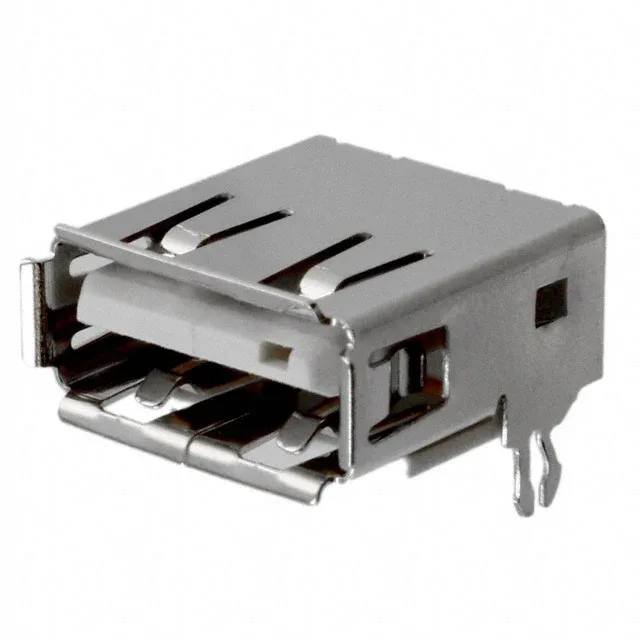

Amphenol 87583 Series USB-A (USB TYPE-A) Receptacle, 4 Contacts, Right-Angle Surface Mount, Board Lock, Gold GXT™ Contact Finish, 3A, 1500 Mating Cycles, UL94 V-0.
| Parameter | Value |
|---|---|
| Series | 87583 |
| Mounting | Surface Mount, Right Angle |
| Connector type | USB-A (USB TYPE-A) |
| Current rating | 3A |
| Positions | 4 |
| Mounting feature | Horizontal |
| Operating temperature | -55°C ~ 85°C |
| Insulation color | White |
| Shell (Shielding material) | Copper Alloy |
| Material flammability rating | UL94 V-0 |
| Gender | Receptacle |
| Package | Tube |
| Parameter | Value |
|---|---|
| Features | Board Lock |
| Shielding | Unshielded |
| Termination | Solder |
| Mating cycles | 1500 |
| Contact finish | Gold, GXT™ |
| Specifications | USB 2.0 |
| Number of ports | 1 |
The right-angle orientation places the USB port parallel to the board, suiting low-profile panel or edge-mount designs where the cable plugs in from the side. The shell is copper alloy, unshielded — so it's suited for basic USB 2.0 signal paths where EMI shielding is handled at the cable or enclosure level.
No official replacement part number is recorded in the lifecycle entry.
Yes, the 87583-2010BPLF is obsolete per Amphenol's lifecycle status. No official replacement part number is provided in the record.
The board locks on the SMT pads hold it in place during reflow and resist cable strain.
Rated for 1500 mating cycles, which is three times the typical USB connector endurance. The gold GXT™ contact finish supports that cycle life without fretting corrosion, so it works in applications where the port gets plugged and unplugged regularly — test equipment, kiosks, or field-service tools.
