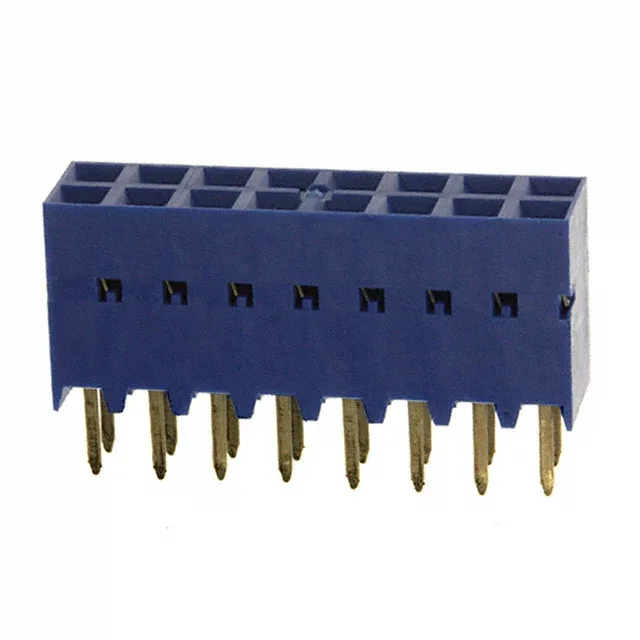

Amphenol ICC (FCI) Dubox receptacle, order code 87606-308LF, 16 positions, dual row, 0.100" (2.54mm) pitch, gold mating finish, through-hole solder termination, UL94 V-0 blue thermoplastic housing.
| Parameter | Value |
|---|---|
| Series | Dubox™ |
| Type | Female Socket |
| Mounting | Through Hole |
| Connector type | Receptacle |
| Fastening type | Push-Pull |
| Contact material | Phosphor Bronze |
| Insulation color | Blue |
| Insulation height | 0.335\" (8.51mm) |
| Insulation material | Thermoplastic, Glass Filled |
| Material flammability rating | UL94 V-0 |
| Style | Board to Board |
| Package | Tube |
| Parameter | Value |
|---|---|
| Termination | Solder |
| Applications | Automotive, General Purpose, Industrial, Telecommunications |
| Contact shape | Square |
| Rows | 2 |
| Pitch | 0.100\" (2.54mm) |
| Positions | 16 |
| Row spacing - mating | 0.100\" (2.54mm) |
| Contact finish - post | Tin |
| Contact length - post | 0.114\" (2.90mm) |
| Contact finish - mating | Gold |
| Contact finish thickness - post | 78.7µin (2.00µm) |
| Contact finish thickness - mating | 30.0µin (0.76µm) |
Within the Dubox 87606 series the 16-position 87606-308LF sits between the 18-position 87606-309LF and the 24-position 87606-312LF — the pitch, row spacing, gold plating grade, and through-hole footprint are shared across the series, so the position count alone determines the board fit.
The 87606-308LF has 16 positions while the 87606-309LF has 18 positions. The pitch, row spacing, and footprint are identical across the series, so the 87606-308LF fits the same board pattern but leaves two positions unpopulated — the circuit count must match the BOM requirement.
