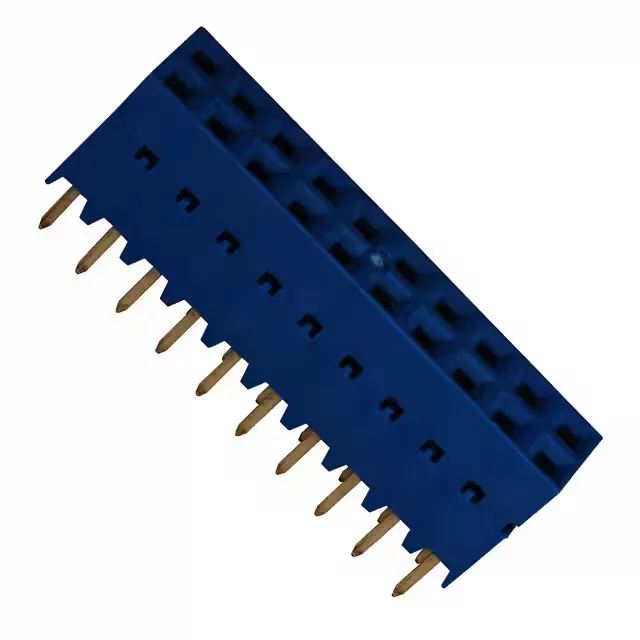

87606-310LF — Amphenol product photo
Amphenol

87606-310LF Amphenol ICC Dubox™ 20-Pin Female Socket Header

MPN87606-310LF
Active

Amphenol ICC (FCI) Dubox™ board-to-board receptacle, 20 positions, dual-row, 0.100" (2.54 mm) pitch, through-hole solder, 30 µinch gold mating finish, tin-plated posts, UL94 V-0 blue thermoplastic housing.

$2.8500Ref. price · indicative, final on quote
87606-310LF datasheet
StockContact for availability
Lead timeIn Stock wk
MOQ1 pcs
  • New & original stockTraceable channels only — no mixed lots, no re-taped reels.
  • Factory packaging where availableSealed reels, trays and bags; cut quantities always stated on the quote.
  • Photo-verified countsEvery line counted and photographed before the box closes.
  • PayPal buyer protectionPay by T/T, PayPal or Payoneer — card payments covered end to end.
How we verify every order →

Specifications

87606-310LF Technical Specifications
ParameterValue
SeriesDubox™
GenderFemale Socket
Mounting typeThrough Hole
Connector typeReceptacle
Fastening typePush-Pull
Contact materialPhosphor Bronze
Insulation colorBlue
Insulation height0.335\" (8.51mm)
Insulation materialThermoplastic, Glass Filled
Material flammability ratingUL94 V-0
StyleBoard to Board
PackageTube
TerminationSolder
ApplicationsAutomotive, General Purpose, Industrial, Telecommunications
Contact shapeSquare
Rows2
Pitch0.100\" (2.54mm)
Positions20
Row spacing - mating0.100\" (2.54mm)
Contact finish - postTin
Contact length - post0.114\" (2.90mm)
Contact finish - matingGold
Contact finish thickness - post78.7µin (2.00µm)
Contact finish thickness - mating30.0µin (0.76µm)

Product details

Within the same Dubox™ series and identical plating grade (30 µinch gold), the 87606-310LF (20 positions) sits between the 18-position 87606-309LF and the 24-position 87606-312LF. For applications where mating cycle life is less demanding, the 87606-810LF offers the same 20-position layout but with a 15 µinch gold finish — half the gold thickness of the 310LF. The 310LF's 30 µinch gold is the better choice for environments with frequent reconnection or higher corrosion risk.

Through-hole solder termination with tin-plated posts — the 78.7 µinch tin thickness on the posts provides a reliable solder joint for wave or hand-soldering processes. The 0.114" (2.90 mm) post length is designed for standard PCB thicknesses; verify your board stack-up if using thicker laminates.
