Board-to-board receptacle, 12 positions, 2.54 mm pitch

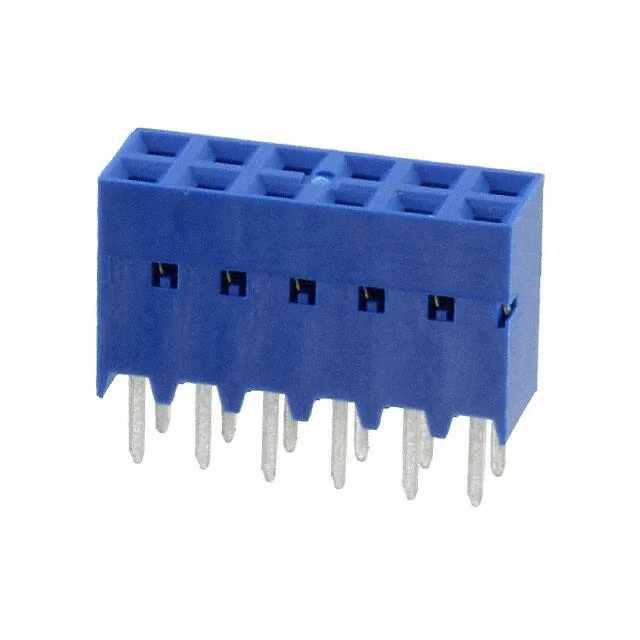

The 87606-806LF is a 12-position, dual-row receptacle in Amphenol ICC's Dubox series, designed for board-to-board stacking with a 0.100" (2.54 mm) pitch and row spacing. Gold-plated mating contacts (15.0 µin) on phosphor bronze deliver reliable signal-level connections; the glass-filled thermoplastic housing carries a UL94 V-0 flammability rating.
Pitch and footprint across the series
The 0.100" (2.54 mm) pitch and row spacing are shared across the Dubox receptacle family, so the board footprint stays the same regardless of position count. The 12-position 87606-806LF mates with standard 0.100" pitch pin headers.
